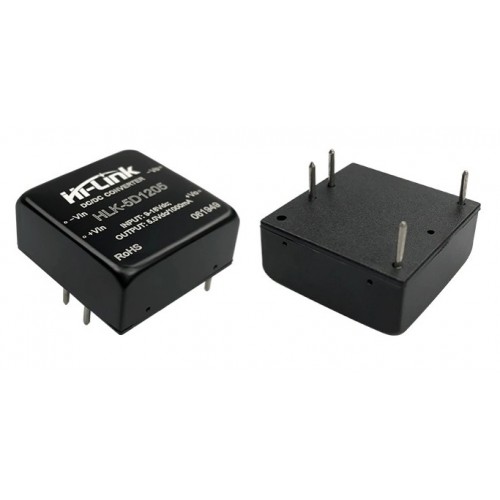

Hi-Link HLK-5D1205 Isolated 5W DC/DC Converter Module

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-21

  • Brand: Hi-Link
  • SKU: 7503 | DAD479

Availability: NotInStock priceValidUntil: 2026-12-21

  • Rs. 261.78 (inc GST)
    Rs.221.85 + GST
    Qty :
  • GST InvoiceWith every order
  • Delivery Across IndiaUsually 2–8 days
  • Bulk OrdersAsk for a quote
  • Import & SourcingComponents imported on request

Hi-Link HLK-5D1205 Isolated 5W DC/DC Converter Module

Hi-Link HLK-5D1205 isolated DC/DC converter module: 12 VDC nominal input, 5 VDC output, 5 W rated power and 1500 VDC input-to-output isolation.

The Hi-Link HLK-5D1205 is an isolated DC/DC converter module that converts a nominal 12 VDC input to a 5 VDC output. Its 5 W rated output suits circuits that need a separate low-voltage supply from a 12 V rail.
Input-to-output isolation separates the input and output sides. Output short-circuit protection recovers automatically after the short is removed, while overcurrent and overvoltage protection help guard the output. A potted metal enclosure and PCB through-hole mounting support direct board integration.
Use this module in industrial control, instrumentation, communications and other verified power conversion applications. Its compact 25.4 mm square footprint can fit equipment where board space matters.
Find Hi-Link power conversion products at DNA, including modules for isolated DC power needs. Browse our DC to DC Converter Modules to compare options for your design. Check other DC to DC Converter Modules that we have in stock
For Indian electronics buyers, DNA can help source parts you cannot find in our listings. Ask us about import support and retail or bulk orders, including DC to DC Converter ICs, relays, resistors and Analog ICs. Contact Us

Features of Hi-Link HLK-5D1205 Isolated 5W DC/DC Converter Module

  • Isolated input-to-output conversion
  • Automatic short-circuit recovery after the fault is removed
  • Output overcurrent and overvoltage protection
  • Potted metal enclosure
  • PCB through-hole mounting

Specifications of Hi-Link HLK-5D1205 Isolated 5W DC/DC Converter Module

  • Rated input voltage: 12 VDC
  • Input voltage range: 9–18 VDC
  • Output voltage: 5 VDC ±2% at no load
  • Rated output current: 1000 mA
  • Rated output power: 5 W
  • Input-to-output isolation voltage: 1500 VDC for a 1-minute test
  • Operating temperature: −40°C to +85°C
  • Dimensions: 25.4 × 25.4 × 11 mm

Applications of Hi-Link HLK-5D1205 Isolated 5W DC/DC Converter Module

  • Medical equipment
  • Industrial control
  • Instrumentation
  • Communications

Related Links for Hi-Link HLK-5D1205 Isolated 5W DC/DC Converter Module

Package Includes

  • 1 X Hi-Link HLK-5D1205 Isolated 5W DC/DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
