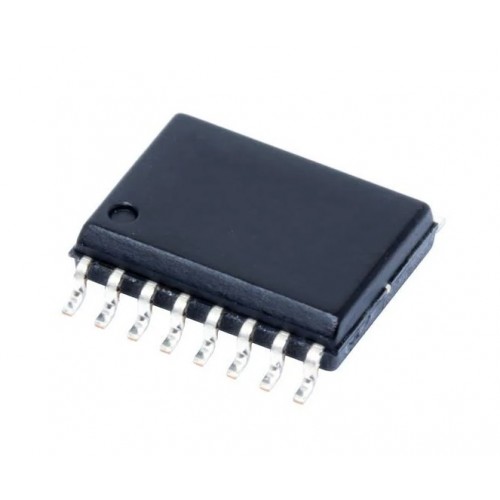

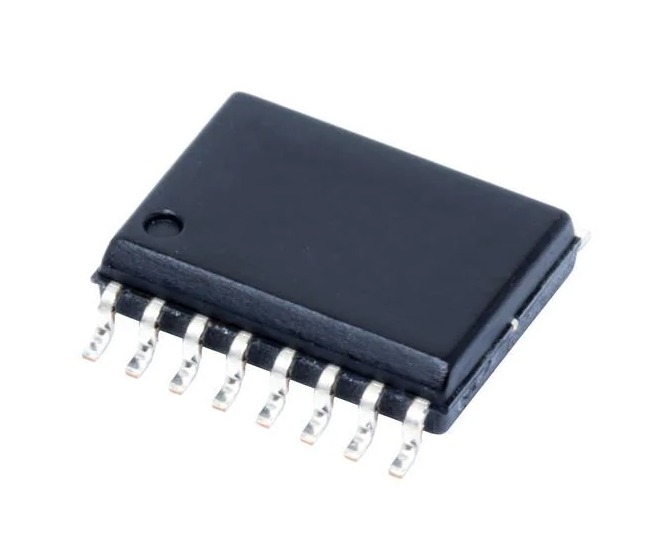

INA114AU Precision Instrumentation Amplifier SMD IC

INA114AU Precision Instrumentation Amplifier SMD IC

INA114AU Instrumentation Amplifier with low offset voltage, low drift, and wide supply range.

The INA114AU Precision Instrumentation Amplifier SMD IC is designed for high-performance applications. This low-cost amplifier ensures excellent accuracy with a versatile three-op-amp design. It offers a gain range from 1 to 10,000 with just one external resistor. The internal input protection withstands up to ±40V, making it reliable for various uses in the field.

Ideal for applications such as surgical equipment and actuator control, the INA114AU provides low offset voltage of 50µV and low drift of 0.3µV/°C. Its high common-mode rejection of 115dB ensures minimal interference, making it suitable for demanding environments. With a supply range of ±2.25V to ±18V, it adapts easily to different systems.

Choose the INA114AU Precision Instrumentation Amplifier SMD IC for your next project and experience the difference in precision. This amplifier is perfect for train control and management systems, as well as trackside signaling and control applications.

Explore Instrumentation Amplifiers at DNA. The INA114AU by Texas Instruments offers exceptional performance for your electronic projects. Check other Instrumentation Amplifiers that we have in stock.

At DNA, we support Indian electronics buyers with a wide range of components. If you can't find what you need, let us know. We can import parts for you and assist with retail or bulk orders. Check our selection of Sensor Modules, Analog ICs, LCDs, Connectors, Development Modules, and Digital ICs. Contact Us

Features of INA114AU Precision Instrumentation Amplifier SMD IC

• Low offset voltage: 50µV maximum
• Low drift: 0.3µV/°C maximum
• High common-mode rejection: 115dB minimum
• Input over-voltage protection: ±40V
• Wide supply range: ±2.25V to ±18V

Specification of INA114AU Precision Instrumentation Amplifier SMD IC

• Gain range: 1 to 10,000
• Input bias current: 2nA maximum
• Package options: PDIP-8 and SOIC-16

Applications of INA114AU Precision Instrumentation Amplifier SMD IC

• Surgical Equipment
• Actuator
• Multifunctional Relay
• Train Control and Management
• Trackside Signaling and Control

Package Includes

• 1 X INA114AU Precision Instrumentation Amplifier SMD IC
