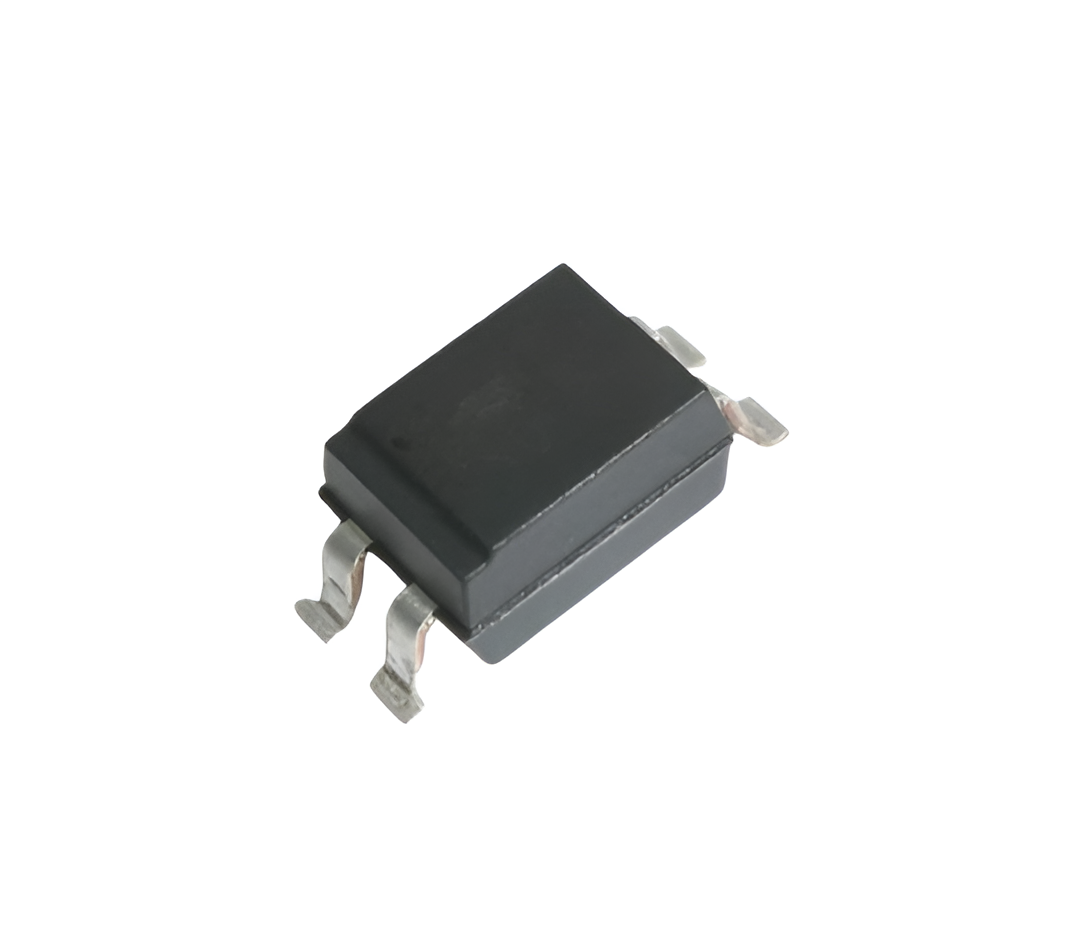

LH1546AEF Solid State Relay IC


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-09-16

  • SKU: 10335 | DAJ238

Availability: NotInStock priceValidUntil: 2026-09-16

  • Rs. 284.97 (inc GST)
    Rs.241.50 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

LH1546AEF Solid State Relay IC

LH1546AEF IC is a robust SPST switch for telecom, featuring GaAlAs LED actuation and MOSFET output.

The LH1546AEF Solid State Relay IC is designed for telecom and ground fault applications. This 4-pin SOP IC functions as an SPST normally open switch, replacing traditional electromechanical relays. It utilizes a GaAlAs LED for actuation control and incorporates MOSFETs for efficient switch output. With built-in current-limiting circuitry, it provides essential overvoltage protection.

Ideal for various applications, the LH1546AEF Solid state Relay IC ensures reliable performance in demanding environments. Its robust construction and advanced technology make it suitable for modern telecom systems. This product is a perfect choice for engineers looking to enhance circuit reliability while minimizing space.

Explore the benefits of the LH1546AEF Solid STate Relay IC, including its compact design and effective switching capabilities. It is an excellent addition to any electronic project where reliability and efficiency are priorities.

Discover reliable solutions with DNA, your trusted retailer for the Brand/Manufacturer in the Relay, Relay Socket & SSR category. Explore other products in this category for all your electronic component needs. Check other Relay, Relay Socket & SSR that we have in stock.

At DNA, we cater to Indian electronics buyers with a wide range of components. If you can't find specific parts, reach out to us. We can import items and support you in retail and bulk orders. Consider related items like Analog IC, Microcontroller, Power Supply, and more. Contact Us

Features of LH1546AEF Relay IC

  • SPST normally open switch
  • GaAlAs LED for actuation
  • MOSFET output for efficiency
  • Overvoltage protection
  • Compact 4-pin SOP design

Specification of LH1546AEF Relay IC

  • 4-pin SOP package
  • Operating voltage: 5V
  • Switching current: 100mA
  • Actuation current: 10mA
  • Isolation voltage: 1kV

Applications of LH1546AEF Relay IC

  • Telecom systems
  • Ground fault detection
  • Circuit protection
  • Automation systems
  • Signal switching

Related Links for LH1546AEF Relay IC

Package Includes

  • 1 X LH1546AEF Solid STate Relay IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
