Product Images are shown for illustrative purposes only and may differ from actual product.

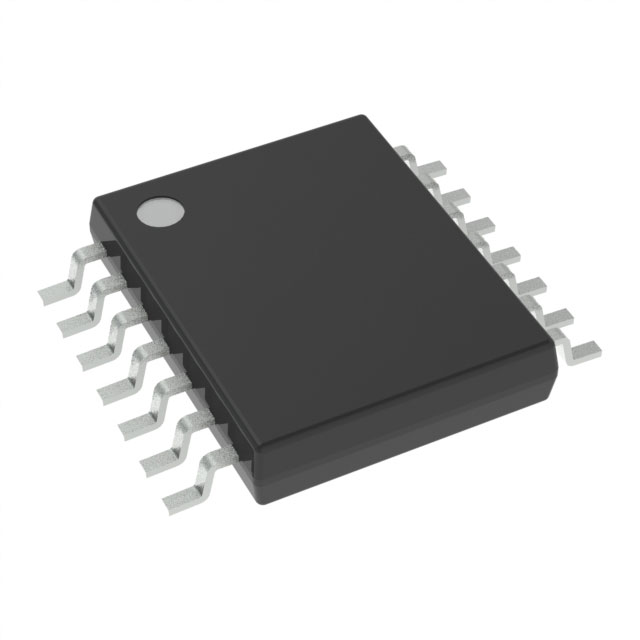

LSF0204PWR Voltage Level Translator SMD IC

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-17

  • SKU: 9456 | DAI325

Availability: NotInStock priceValidUntil: 2026-12-17

  • Rs. 168.15 (inc GST)
    Rs.142.50 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

LSF0204PWR Voltage Level Translator SMD IC

LSF0204PWR Voltage Level Translator SMD IC for 4-bit bidirectional level shifting; operates from 0.95V to 5.5V.

The LSF0204PWR Voltage Level Translator SMD IC is a 4-bit bidirectional device designed for efficient voltage-level shifting. It supports open-drain and push-pull interfaces, making it ideal for mixed-voltage systems. This compact IC operates within a voltage range of 0.95V to 3.6V for Vref A and 1.65V to 5.5V for Vref B. The LSF0204PWR is perfect for I²C, SPI, and UART communications in portable electronics and industrial applications.
With ultra-low static power consumption and no direction control pin required, the LSF0204PWR Voltage Level Translator IC ensures reliable performance in various environments. Its TSSOP-14 package makes it suitable for space-constrained applications while maintaining compatibility with standard logic families. This device is a must-have for engineers working on automotive control units and consumer devices.
Explore the capabilities of the Texas Instruments LSF0204PWR in your mixed-voltage projects. This versatile level translator provides the necessary interface for seamless communication across different voltage levels, enhancing the performance of your electronic designs.
At DNA, we offer a wide range of components from Texas Instruments in the 'Components & IC's' category. Explore our collection of electronic components tailored for Indian customers. Check other 'Components & IC's' that we have in stock.
If you are an Indian electronics buyer, reach out to us for any specific parts you need. We can import components not in stock and support both retail and bulk orders. We also provide related items like Crystals, Inductors, Power Supplies, Connectors, LCDs, and Capacitors. Contact Us

Features of LSF0204PWR Voltage Level Translator SMD IC

  • 4-channel bidirectional level shifting
  • Supports open-drain and push-pull interfaces
  • Wide voltage range: 0.95V to 3.6V and 1.65V to 5.5V
  • No direction control pin required
  • Ultra-low static power consumption
  • Available in TSSOP-14 package
  • Compatible with standard logic families

Specification of LSF0204PWR Voltage Level Translator SMD IC

  • Part Number: LSF0204PWR
  • Function: Voltage Level Translator, Bidirectional
  • Channels: 4
  • Vref A Range: 0.95V to 3.6V
  • Vref B Range: 1.65V to 5.5V
  • Operating Temperature: -40°C to +85°C
  • Package Type: TSSOP-14

Applications of LSF0204PWR Voltage Level Translator SMD IC

  • Mixed-voltage system interfacing
  • I²C and SPI bus level translation
  • Portable electronics and consumer devices
  • Industrial and automotive control units

Package Includes

  • 1 X LSF0204PWR Voltage Level Translator SMD IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
