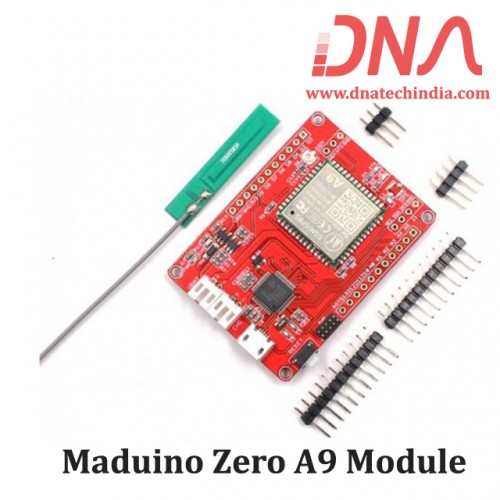

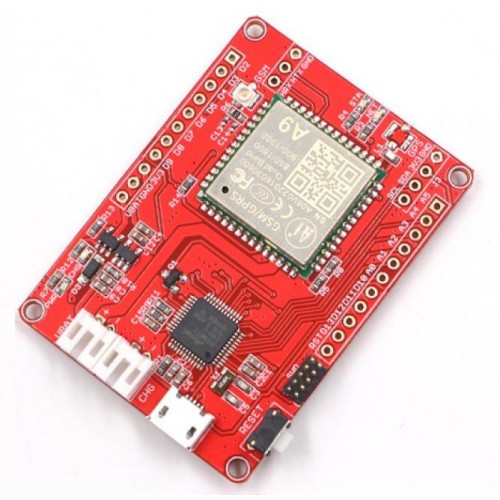

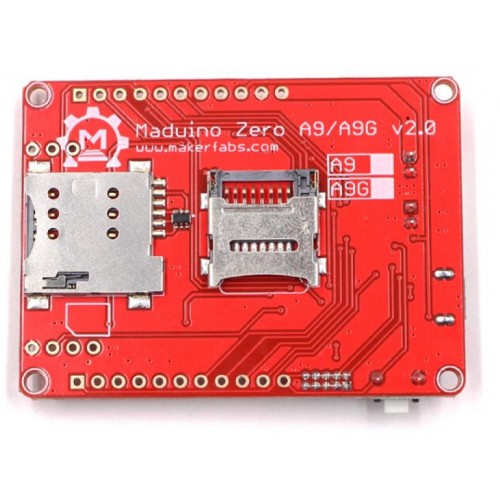

Maduino Zero A9 Module

Maduino Zero A9 is an IOT (Internet of things) Solution based on the 32-bit Atmel’s SAMD21 MCU and GPRS/GSM GPS module A9.

It integrate a micro Controller ATSAMD21G18, GRRS/GSM module A9, which is the upgrade version of Maduino GPRS A6, power management and storage, to make the A9 ready for real project for IOT projects such as smart-home, outdoor monitoring, etc. The Marduino Zero A9 based on the Arduino, users can program it with Arduino IDE, which is very easy especially suit for the none-programmers. There are also guide for users to learn how to create the first IOT project with this board, with which the starters can learn the hardware and programming skill quickly. With this board, you will easy to add text, SMS and data to your project. It is good for your smart home project or M2M and so on.

We have Various sizes of Maduino Module. Check out our complete collection of Maduino Module.

Features of Maduino Zero A9 Module

• BAT Input Voltage : 3.4-4.2V

• ATSAMD21G18, 32-Bit ARM Cortex M0+

• Micro SIM connector

• Integrated Power Control System

• Support AT Command

• Quad-band : 850/900/1800/1900Mz

• Support GPRS data traffic, the maximum data rate,

• download 85.6Kbps, upload 42.8Kbps

• Support SMS text messaging

• Support USB power charge

• Support Micro SD Card

• Interface : I2C/SPI/UART/18*GPIO

• Arduino compatible

• Working Temperature : -40 – 85℃

• Default baud rate : 115200
