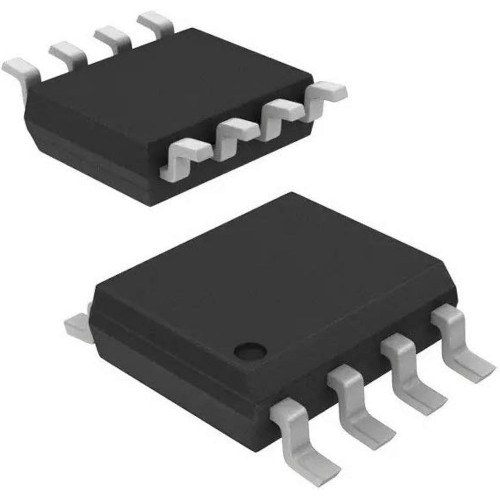

• MAX31855 Cold-Junction Compensated Thermocouple-to-Digital Converter IC

Product Images are shown for illustrative purposes only and may differ from actual product.

MAX31855 Cold-Junction Compensated Thermocouple-to-Digital Converter IC

  • Stock: 20
  • SKU: 7440 | DAF664
  • Rs. 354.00 (inc GST)
    Rs.300.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

MAX31855 Cold-Junction Compensated Thermocouple-to-Digital Converter IC

MAX31855 Cold-Junction Compensated Thermocouple-to-Digital Converter IC

The MAX31855 is a sophisticated thermocouple-to-digital converter that integrates cold-junction compensation, signal conditioning, and a 14-bit analog-to-digital converter (ADC) to provide temperature data directly from a thermocouple. The device supports Type K thermocouples (as well as J, N, T, E, R, S, and other types through different variants). The IC outputs the measured temperature data via a Serial Peripheral Interface (SPI), allowing easy interfacing with microcontrollers or other digital devices.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of MAX31855 Cold-Junction Compensated Thermocouple-to-Digital Converter IC

  • Wide Thermocouple Compatibility: Supports Type K thermocouples directly and other types (J, N, T, etc.) with specific variants.
  • Cold-Junction Compensation: Built-in cold-junction compensation ensures accurate temperature readings by adjusting for ambient temperature changes at the thermocouple’s connection point.
  • High Accuracy: Accuracy within ±2°C for readings from −200°C to +700°C with a Type K thermocouple.
  • Digital SPI Interface: Provides easy integration with microcontrollers or other SPI-enabled devices.
  • Wide Temperature Range: Can measure thermocouple temperatures from −200°C to +1350°C, depending on the thermocouple type.
  • 14-Bit ADC Resolution: Provides precise temperature readings with a resolution of 0.25°C.

Specifications of MAX31855 Cold-Junction Compensated Thermocouple-to-Digital Converter IC

  • Input Types: Supports Type K thermocouple (other thermocouple variants available for different models).
  • Temperature Measurement Range: Thermocouple Range (Type K): −200°C to +1350°C.
  • Communication Interface: SPI Interface, with a data transfer rate of up to 5MHz.
  • Dimensions: SOIC-8 package dimensions: 4.9mm x 3.9mm (approx).

    Package Includes

    • 1 x MAX31855 Cold-Junction Compensated Thermocouple-to-Digital Converter IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
