Product Images are shown for illustrative purposes only and may differ from actual product.

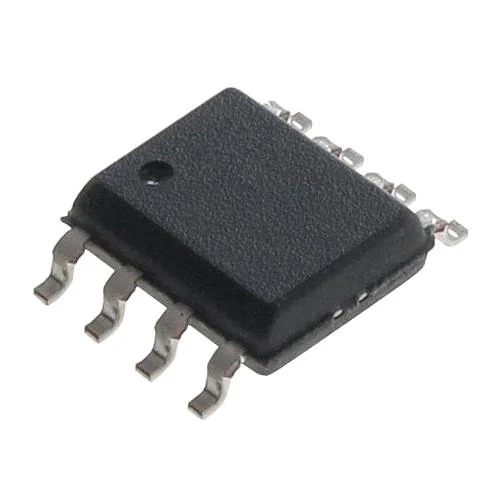

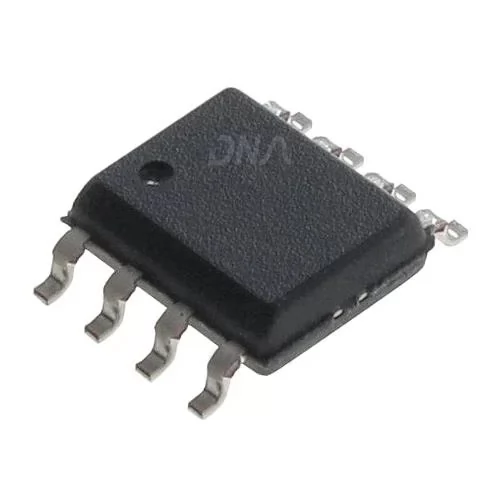

MAX660ESA+T CMOS Monolithic Voltage Converter IC

  • Stock: 100

    Availability: InStock priceValidUntil: 2026-12-20

  • SKU: 7634 | DAH486

Availability: InStock priceValidUntil: 2026-12-20

  • Rs. 174.32 (inc GST)
    Rs.147.73 + GST
    Qty :
  • GST InvoiceWith every order
  • Delivery Across IndiaUsually 2–8 days
  • Bulk OrdersAsk for a quote
  • Import & SourcingComponents imported on request

MAX660ESA+T CMOS Monolithic Voltage Converter IC

MAX660ESA+T voltage inverter converts +1.5V to -5.5V with 100mA output, featuring 90% efficiency and low current draw.

The MAX660ESA+T CMOS Monolithic Voltage Converter IC is designed for efficient voltage inversion. It converts input voltages from +1.5V to +5.5V into corresponding negative outputs of -1.5V to -5.5V, making it ideal for battery-powered devices. With only two capacitors, it eliminates the need for inductors, reducing size and cost. The device boasts an efficiency greater than 90% across most load conditions, making it suitable for various applications such as laptop computers, medical instruments, and operational amplifier power supplies.
This converter provides a reliable 100mA output while maintaining a low operating current of just 120µA. Its selectable oscillator frequency enhances versatility in different applications. The MAX660ESA+T can also double the input voltage, providing +9.35V at 100mA from a +5V input, which is beneficial for high-current load scenarios.
Utilize the MAX660ESA+T CMOS Monolithic Voltage Converter IC in interface power supplies or hand-held instruments to achieve optimal performance. Its compact design and high efficiency make it a valuable component in modern electronic systems.
Explore the reliability of Power Devices with the MAX660ESA+T CMOS Monolithic Voltage Converter IC from DNA. Discover more high-quality products in the Power Devices category. Check other Power Devices that we have in stock.
If you're searching for specific electronic components in India, DNA is here to help. We can import parts not currently in stock and support both retail and bulk purchases. Explore related items like Power Supply, IGBT, and Analog IC. Contact Us

Features of MAX660ESA+T CMOS Monolithic Voltage Converter IC

  • Small Capacitors
  • 0.65V Typ Loss at 100mA Load
  • Low 120µA Operating Current
  • 6.5Ω Typ Output Impedance
  • Guaranteed ROUT < 15Ω for C1 = C2 = 10µF
  • Pin-Compatible High-Current ICL7660 Upgrade
  • Inverts or Doubles Input Supply Voltage
  • Selectable Oscillator Frequency: 10kHz/80kHz
  • 88% Typ Conversion Efficiency at 100mA (IL to GND)

Specification of MAX660ESA+T CMOS Monolithic Voltage Converter IC

  • Input Voltage: +1.5V to +5.5V
  • Output Voltage: -1.5V to -5.5V
  • Output Current: 100mA
  • Efficiency: >90%
  • Operating Current: 120µA
  • Output Impedance: 6.5Ω

Applications of MAX660ESA+T CMOS Monolithic Voltage Converter IC

  • Laptop Computers
  • Medical Instruments
  • Interface Power Supplies
  • Hand-Held Instruments
  • Operational-Amplifier Power Supplies

Package Includes

  • 1 X MAX660ESA+T CMOS Monolithic Voltage Converter IC
