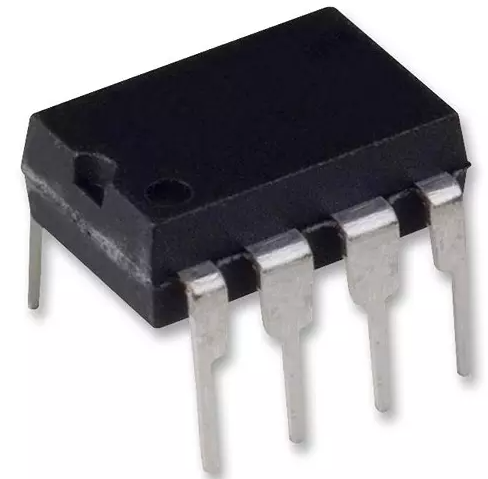

MCT9001 Optoisolator Transistor DIP IC

OptoCoupler MCT9001 Optoisolator Transistor DIP IC

MCT9001 Optoisolator with high CTR, low input current, and 5000 Vrms isolation.

The MCT9001 Optoisolator Transistor DIP IC is designed for reliable signal transfer in various electronic applications. It features a robust infrared LED optically coupled to a silicon NPN phototransistor, providing excellent electrical isolation. With a high current transfer ratio and low input current requirements, it is perfect for microprocessor interfaces, power supply feedback, and signal coupling in noisy environments. The compact DIP package allows for easy integration into through-hole PCB designs.

Ideal for industrial automation systems, the MCT9001 Optoisolator Transistor DIP IC ensures high noise immunity and fast switching capabilities. Its isolation voltage of up to 5000 Vrms guarantees safety in sensitive applications. This optoisolator is an essential component for any electronic project requiring reliable isolation and signal integrity.

Explore the potential of the MCT9001 Optoisolator Transistor DIP IC for your circuit designs and experience enhanced performance and safety in your electronic systems.

Explore the versatility of the OptoCouplers & OptoIsolators category at DNA. The MCT9001 is a key component for reliable electrical isolation. Check other "OptoCouplers & OptoIsolators" that we have in stock.

At DNA, we cater to all your electronic component needs. If you cannot find specific parts, let us know. We can import items and support both retail and bulk orders. Check out our selection of Microcontrollers, LCDs, Development Boards, IGBTs, and DC to DC Converter Modules. Contact Us

Features of MCT9001 Optoisolator Transistor DIP IC

• High current transfer ratio (CTR)
• Low input current requirement
• High isolation voltage up to 5000 Vrms
• Fast switching capability
• Compact DIP package for easy mounting

Specification of MCT9001 Optoisolator Transistor DIP IC

• Input type: Infrared LED
• Output type: NPN phototransistor
• Isolation voltage: 5000 Vrms
• Current transfer ratio: 50% – 600%
• Collector-emitter voltage: 80 V
• Forward current (If): 60 mA max

Applications of MCT9001 Optoisolator Transistor DIP IC

• Microprocessor input/output isolation
• Switching power supply feedback
• Signal coupling in noisy environments
• Industrial automation systems

Related Links for OptoCoupler MCT9001 Optoisolator Transistor DIP IC

• Other Products from OptoCouplers & OptoIsolators Category

Package Includes

• 1 X MCT9001 Optoisolator Transistor DIP IC
