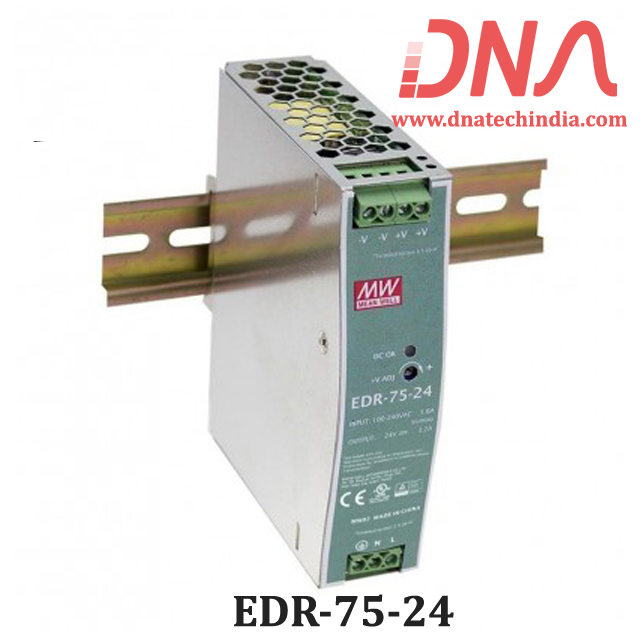

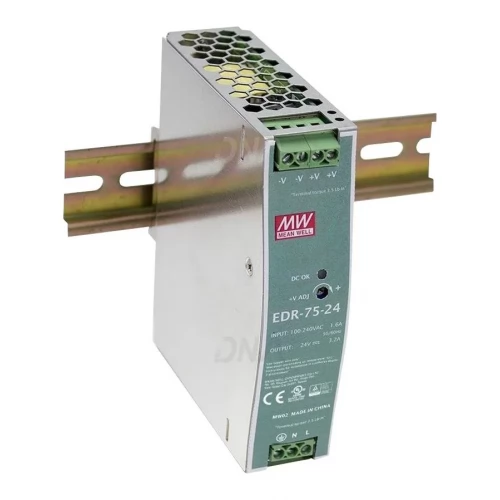

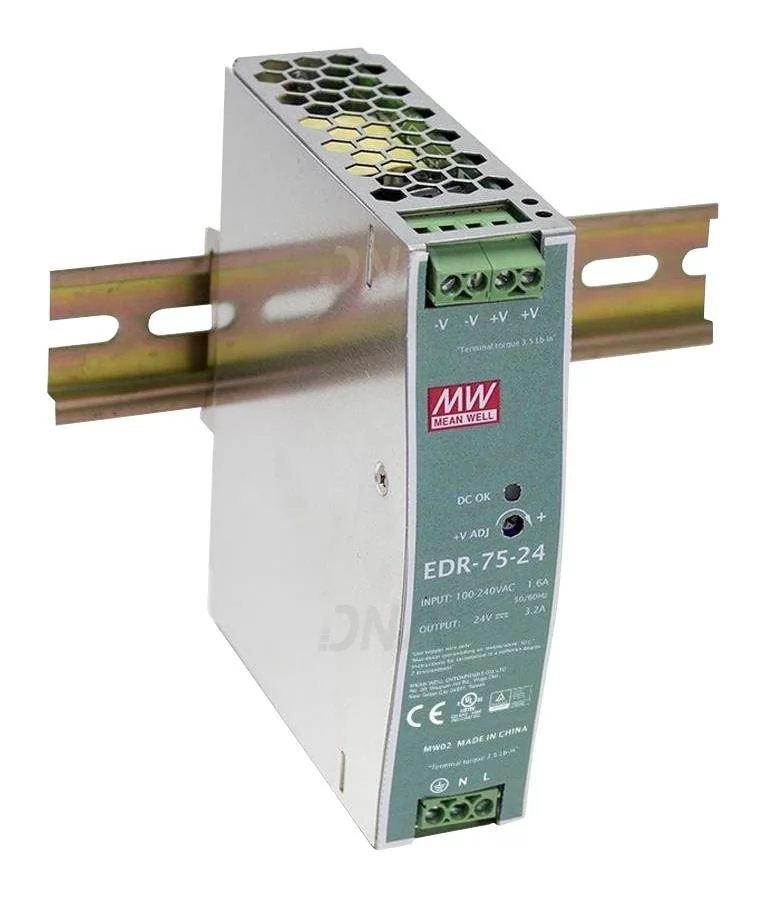

Meanwell EDR-75-24 Power Supply

24 Volts, 75 Watt Din Rail Mounting Power Supply from Meanwell

EDR-75 is one economical slim 75 Watt Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 32mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VAC to 264VAC and conforms to EN61000-3-2, the norm the European Union regulates for harmonic current

EDR-75-24 is a high quality Industrial Grade SMPS fom Meanwell. EDR-75-24 SMPS is a 75 watt SMPS and gives 24 volts output. Meanwell EDR-75 -24 switching power supply comes in mesh type casing and is very easy to mount.

Check out our Complete variety of Meanwell SMPS that we have.

Features of EDR-75-24 Meanwell SMPS

Protections : Short circuit / Overload / Over voltage / Over temperature

Universal AC input / Full range

Cooling by free air convection

LED indicator for power on

100% full load burn-in test

No load power consumption<0.5W

All using 105  long life electrolytic capacitors

Withstand 300 VAC surge input for 5 second

High operating temperature up to 70°C

Withstand 5G vibration test

High efficiency, long life and high reliability

Specification for EDR-75-24 Meanwell Power Supply

OUTPUT	Wattage  Voltage  Max Current	76.8 Watt 24 Volts 3.2 Ampere
INPUT	Efficiency Frequency Range:	87.5 % 47 ~ 63Hz
PROTECTION	Overloaded Over Volt	110 ~ 150% Rated Output Power. 29 ~ 33 Volts
ENVIRONMENT	Working Temp: Working Humidity: Storage Temp:  Vibration:	-30 ~ +70°C 20 ~ 90% RH non-condensing -40 ~ +85, 10 ~ 95% RH 10 ~ 500Hz, 5G 10min./1cycle, period for  60min. each along X, Y, Z axes
