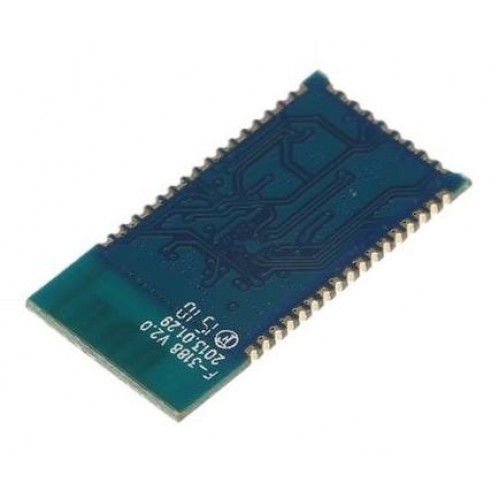

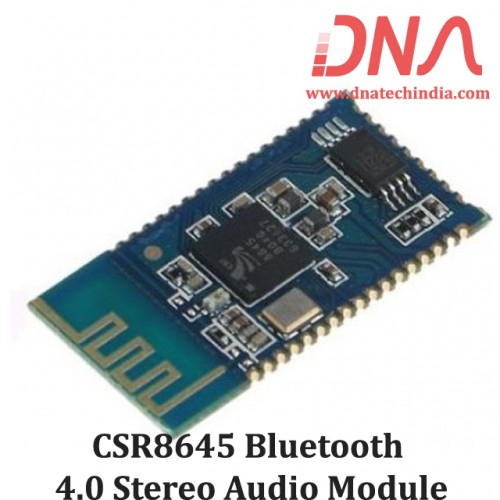

CSR8645 Bluetooth 4.0 Stereo Audio Module

  • Stock: Out Of Stock
  • SKU: 1852 | DAA780
  • Rs. 796.50 (inc GST)
    Rs.675.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

CSR8645 Bluetooth 4.0 Stereo Audio Module

This Module is based on Qualcomm's CSR8645 Bluetooth Audio Platform IC

The CSR8645/F3188 is an easy and cost-effective platform for developing wireless audio products and supports reduced development time. It is an ideal solution for a range of highly differentiated home entertainment and wearable audio products including stereo headphones, speakers, speakerphones, headsets and hands-free devices.

We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of CSR8645/F3188 Bluetooth 4.0 Stereo Audio Module

  • Type : F-3188
  • Bluetooth Specification : v 4.0
  • Voltage : DC 3.3 Volts - 4.2 Volts
  • Bluetooth protocol : HFP V1.6/A2DP V1.2/AVRCP V1.4/HSP V1.2
  • Working Current : =30mA
  • Standby Current : <50uA
  • Temperature range : -40 Celsius ~ +80 Celsius
  • Wireless transmission range : > 10m
  • Transmission power : CLASS1/CLASS2/CLASS3,9dbm(MAX)
  • Sensitivity : -80dBm<0.1%BER
  • Frequency Range : 2.4GHZ ~ 2.480GHZ
  • External Interface : PIO/SPI/I2S/PCM/USB
  • Audio Performance : AAC/MP3/SBC/APTX
  • Audio SNR : =75dB
