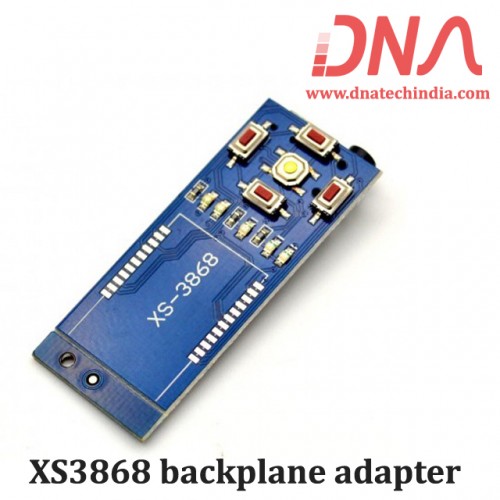

XS3868 backplane adapter

XS3868 adapter for XS3868 Bluetooth Module

This  is a backplane adapter for the XS3868 Bluetooth stereo Module which is based on OV3860 bluetooth IC. Please note this is just the adapter plate it does NOT contain the XS3868 Module.

This backplane (shield) is awesome it even provide to connect a 3.7 volt Lion Battery It comes with an USB port through which the battery can charged.

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features:

  • High integration, low cost, low power consumption
  • Meet Bluetooth2.0 specification
  • Support A2DP V1.2, AVRCP V1.4 profiles
  • Block integrated EEPROM, configurable working mode and parameters
  • Stereo audio output can direct drive 40 mw 32 Ω speakers
  • Low voltage detection

Scope of Application:

  • The bluetooth stereo headset
  • The bluetooth stereoParameter

Parameters:

  • The USB charging voltage : 4.2 V ~ 5 V
  • The USB charging current : 400 ma
  • XS - 3868 power supply voltage : 3.6 V to 4.2 V
  • Play music current : 80 ma (MAX)
  • The current machine : less than 1 ma
  • The module size : 49 x 22 mm (not welded XS - 3868), 54.5 x 22 mm (welding XS - 3868)
