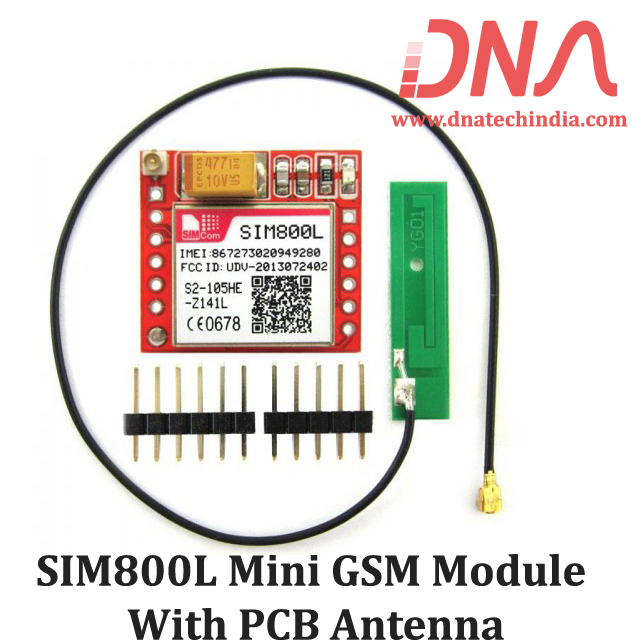

SIM800L Mini GSM Module With PCB Antenna

Write a review | 3 reviews

Stock: 2
Availability: InStock priceValidUntil: 2026-07-02
Brand: Generic
SKU: 588 | DAB347

Rs. 420.00 (inc GST)
Rs.355.93 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

SIM800L Mini GSM Module

SIM800L Mini GSM Module With PCB Antenna

This is a Mini GSM / GPRS breakout board is based on SIM800L module, supports quad-band GSM/GPRS network, available for GPRS and SMS message data remote transmission. The board features compact size and low current consumption. With power saving technique, the current consumption is as low as 1m A in sleep mode.

SIM800 is communicates with microcontroller via UART port, supports command including 3GPP TS 27.007, 27.005 and SIM COM enhanced AT Commands.

We have Various sizes of GPS-GSM Module. Check out our complete collection of GPS-GSM Module.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SIM800 Mini GSM

Quad-band 850/900/1800/1900MHz - connect onto any global GSM network with any 2G SIM (in the USA, T-Mobile is suggested).
Make and receive voice calls using a headset or an external 8Ω speaker and electret microphone.
PWM/Buzzer vibrational motor control
AT command interface with "auto baud" detection
Send and receive SMS messages.
Send and receive GPRS data (TCP/IP, HTTP, etc.).
Scan and receive FM radio broadcasts.
Lead out buzzer and vibrational motor control port.
AT command interface with "auto baud" detection.
Onboard IPEX socket that can be connected to external antenna.
Breakouts for external 8W speaker and electret mic if you don't want to use a headphone
Level shifting circuitry so you can run it with 2.8V to 5V logic.
Vibrational motor (buzzer) driver so you can have noiseless notifications
uFL or SMA connections for external antenna
Indicator LEDs for power and network connectivity
Standard SIM slides into the back

About 3G PCB Antenna

Suitable for SIM800L GSM modules / Arduino SIM900 GPRS Shield.
Frequency : 780MHz~960MHz, 1710MHz~2170MHz.
Antenna gain : +2.0+/-0.7dBi @ 880 MHz, +2.0+/-0.7dBi @ 1800 MHz.
S.W.R <= 2.0 @ 2100MHz~2500MHz.
Output Impedance : 50Ohm.
Extension cable interface : IPEX.

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
