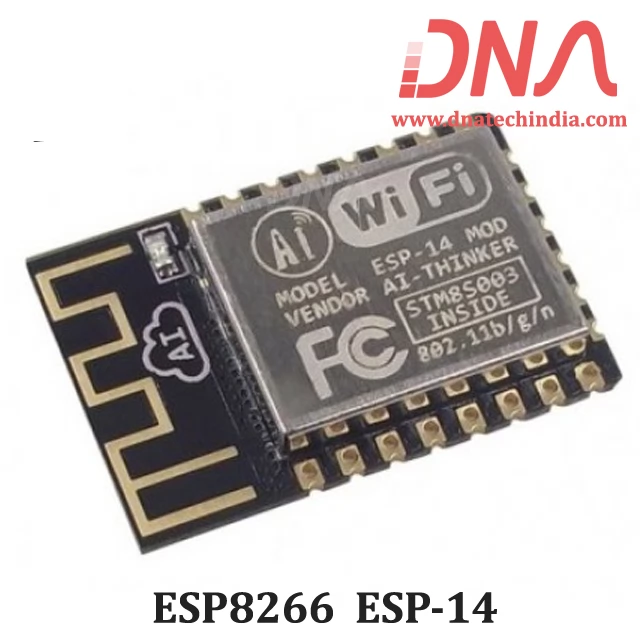

• ESP8266 ESP-14 WiFi Serial Transceiver Module

Product Images are shown for illustrative purposes only and may differ from actual product.

ESP8266 ESP-14 WiFi Serial Transceiver Module

  • Stock: 2
  • SKU: 0985 | DAA560
  • Rs. 466.10 (inc GST)
    Rs.395.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

ESP8266-ESP14 WiFi Serial Transceiver Module

The ESP-14 is kind of like a multi-core ESP8266, combining an ESP8266 mcu with a STM8S003F3 microcontroller.

The purpose of this combination is to provide more I/O pins than a regular ESP8266 based board such as ESP-12x, acting as an I/O extender.

The STM8S003F3 mcu is 20-pin packaged low-cost 8bit mcu running at 16MHz, with 8kb flash memory and 1kb RAM. It sports 16 GPIOs, of which 5 multiplexed 10-bit ADC channels, and UART Tx (PD5) and Rx (PD6). Well, unfortunately, the UART ports are also two of the ADC ports,so this will restrict to 3 available ADCs, 2UART and 11 digital IOs (configurable as I2C or SPI bus too). The ESP-14 board’s 22 pins breaks out all of STM8’s pins, plus the ESP8266 VCC and GPIO0 pins, to control flashing of the ESP.

DNA Solutions has large collection of various types of Transceiver Module. Check our complete collection of Transceiver Module


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of ESP-14

  • Based on ESP-12E prototype design

  • Inside adds STM8S003F3P6, STM8S can control ESP8266 by AT commands. The module is a complete STM8S MCU, can operate WIFI via STM8 microcontroller programming..

  • Very compact package size and ultra-low power technology

  • Can be widely used in smart home network and IoT, for connecting the device to the user’s physical Wi-Fi wireless network for Internet or LAN communications, networked functions.

  • The module is built into a powerful STM8003 chips, all the pins are lead out, and the serial port from STM8003 is connected with ESP8266

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
