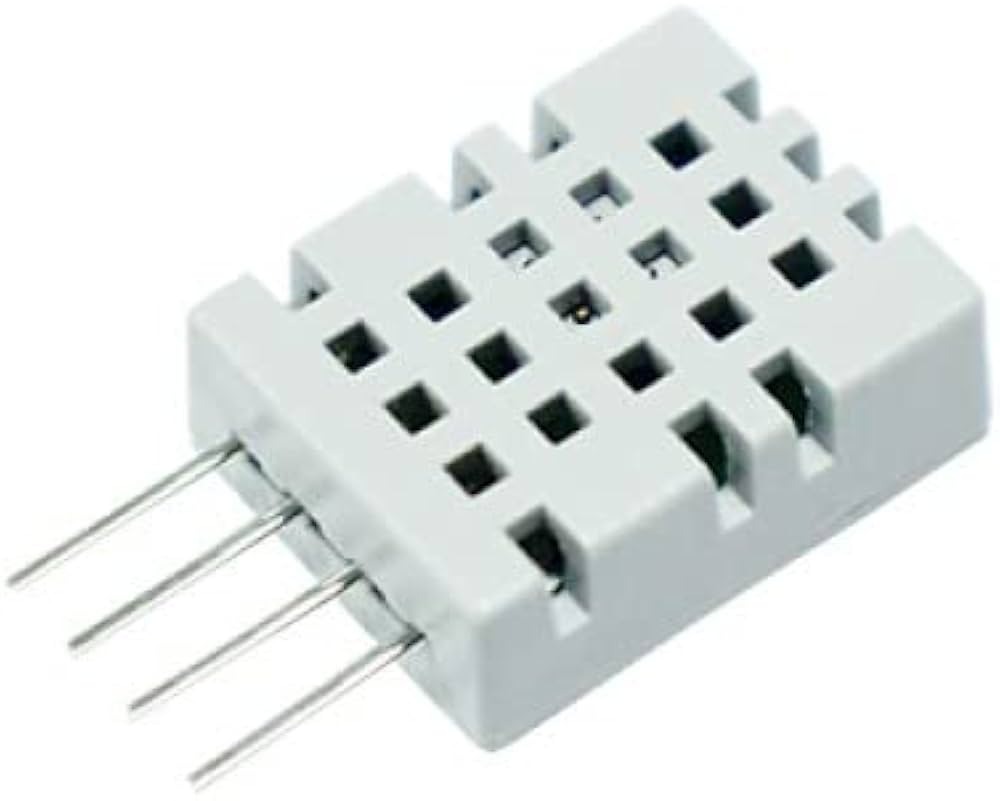

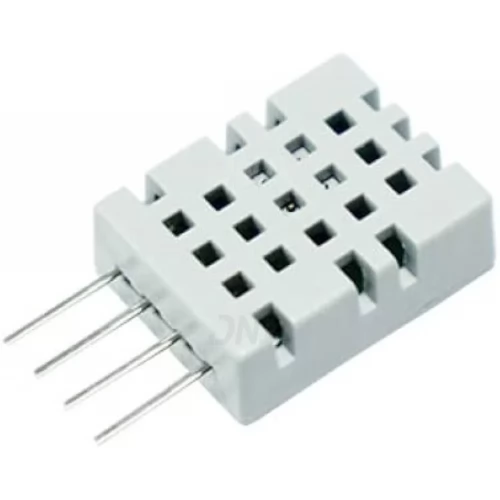

ASAIR AGS02MA MEMS TVOC Gas Sensor with I2C Output

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-19

  • Brand: ASAIR
  • SKU: 7040 | DAH020

Availability: NotInStock priceValidUntil: 2026-12-19

  • Rs. 200.60 (inc GST)
    Rs.170.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

ASAIR AGS02MA MEMS TVOC Gas Sensor with I2C Output

AGS02MA MEMS TVOC gas sensor with calibrated I2C output, 3.3–5.5 V supply and a 0–99999 ppb measurement range.

The ASAIR AGS02MA is a TVOC gas sensor that measures total volatile organic compound concentration and sends calibrated digital readings over I2C. It runs from a 3.3–5.5 V DC supply and measures TVOC across a range of 0–99999 ppb.
Its MEMS metal oxide sensing design gives the sensor a compact four-pin form. The calibrated I2C output lets a host device read measurements digitally, with results available as ppb or µg/m³ readings. This supports straightforward integration into electronic products that monitor air conditions.
Use the AGS02MA in environmental monitoring, air purifiers, household electrical appliances and new fans. Its digital TVOC measurement can help these products track changes in air quality.
Explore ASAIR sensing components at DNA, an Indian electronics retailer. Browse the GAS and Air Quality Sensor range for TVOC measurement and related parts. Check other GAS and Air Quality Sensor that we have in stock
Indian electronics buyers can contact DNA if they cannot find a part. We offer import support and help with retail and bulk orders. Ask us about related sensors and electronic components. Contact Us

Features of ASAIR AGS02MA MEMS TVOC Gas Sensor with I2C Output

  • MEMS semiconductor metal oxide sensing technology
  • Calibrated digital TVOC output
  • I2C slave interface
  • TVOC output selectable in ppb or µg/m³
  • Zero calibration available, with calibration data lost after power-off

Specifications of ASAIR AGS02MA MEMS TVOC Gas Sensor with I2C Output

  • Supply voltage: 3.3–5.5 V DC
  • TVOC measurement range: 0–99999 ppb, with typical accuracy range of 0–9999 ppb and values above that in the extended range
  • Accuracy: 30% F.S. typical and 50% F.S. maximum at 25°C and 50% RH
  • Output unit: ppb or µg/m³
  • I2C communication rate: Less than 30 kHz
  • Supply current: 25 mA minimum, 28 mA typical, 33 mA maximum
  • Operating temperature: 0°C to 50°C
  • Working humidity: 0–95% RH

Applications of ASAIR AGS02MA MEMS TVOC Gas Sensor with I2C Output

  • Environmental monitoring
  • Air purifiers
  • Household electrical appliances
  • New fans

Related Links for ASAIR AGS02MA MEMS TVOC Gas Sensor with I2C Output

Package Includes

  • 1 X ASAIR AGS02MA MEMS TVOC Gas Sensor with I2C Output
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
