FN-M22P MP3 Module

  • Stock: Out Of Stock
  • SKU: 1084 | DAA735
  • Rs. 1,178.82 (inc GST)
    Rs.999.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

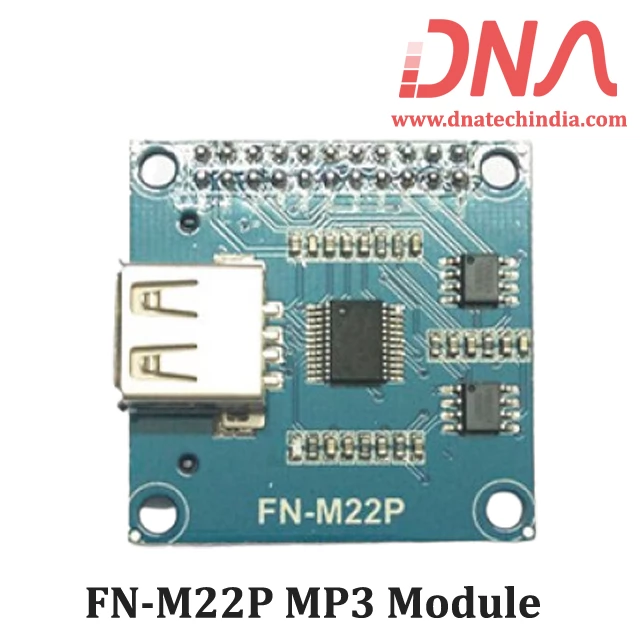

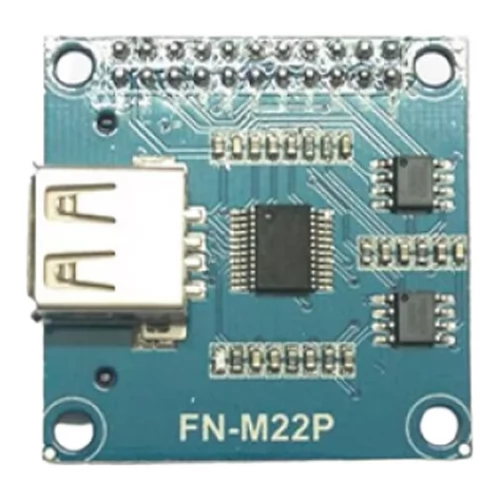

FN-M22P MP3 Module

It can be controlled easily via MCU commands or external push buttons. Easy to operate and high performance.

FN-M22P is a high quality audio playback module, which integrates MP3 and WAV decoder seamlessly, and supports parallel port control mode, UART serial port control and key control mode. It takes a SD card or USB flash stick as the storage device, which can be chosen by users freely.

We have Various sizes of Audio, Sound and Voice Module. Check out our complete collection of Audio, Sound and Voice Module.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of FN-M22P

  • With high quality audio decoder, supports MP3 and WAV audio formats.

  • Sampling rates supported: 8/11.025/12/16/22.05/24/32/44.1/48(KHz).

  • 24 bit DAC output and supports dynamic range 90dB and SNR 85dB.

  • Supports multiple key control mode, parallel control mode and UART serial port control mode.

  • Possible to update audio files in the SD card via USB connecting with a PC.

  • Supports playback of 63 audio files through binary encoding in parallel mode.

  • Supports maximum 3000 audio files under the root directory of the storage device in serial mode.

  • Supports maximum 99 folders and each folder stores maximum 255 audio files in serial mode.

  • Supports combination playback (plays a group of audio files one after the other without pause) in serial mode.

  • Supports advertisement inter-cut function during playing a sound in serial mode.

  • Built-in double 3 watts amplifiers that can drive two 3 watts speakers directly.

  • Adjustable 30 levels sound volume.

  • Power input range : DC3.3-5V (5V is typical)

  • Module size : 40x40mm
