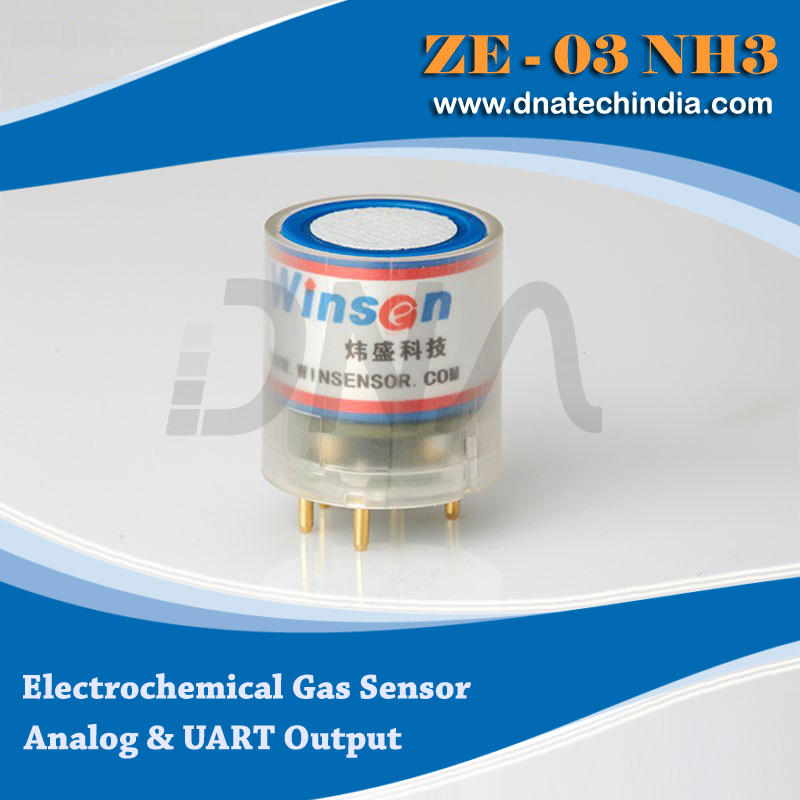

Winsen ZE03-NH3 GAS Sensor Module


Write a review | 1 reviews

  • Stock: Pre-Order Delivery 12-15 Days

    Availability: NotInStock priceValidUntil: 2026-03-13

  • Brand: Winsen
  • SKU: 1760 |

Availability: NotInStock priceValidUntil: 2026-03-13

  • Rs. 10,736.82 (inc GST)
    Rs.9,099.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Winsen ZE03-NH3 GAS Sensor Module

Electrochemical GAS Detection Module ZE03-NH3

ZE03-NH3 Gas sensor can be used to measure Ammonia gas concentration in atmosphere. This is an Industrial grade sensor and is are very easy to interface to your Micro-controller, Arduino as well as Raspberry Pi as they have linear Analog output as well as UART output (3 volts).

ZE03 Series of Gas Sensor Modules by Winsen is a general-purpose and high-performance electrochemical module. It uses three electrodes, electro-chemical gas sensor and high-performance micro-processor. By using this GAS Sensor you will be able to Monitor concentration of Ammonia gas.

It is with built-in temperature sensor to make temperature compensation, which makes more accurate to detect Ammonia gas concentration. It has the digital output as well as analog voltage output at the same time which facilities the usage and calibration and shortens the development period. It is a combination of mature electrochemical detection principle and sophisticated circuit design, to meet customers different detection needs.

Features Of ZE03-NH3 Gas  Detection Module ZE03-NH3

  • High sensitivity & resolution
  • Low power consumption
  • UART and analog voltage output
  • Good stability and excellent anti-interference ability

Application Of ZE03-NH3 Gas Detection Module

  • Portable and fixed gas detector, various gas detection equipment and situation.

Technical Parameters ZE-NH3 Ammonia Gas Sensor Module

  • Model No : ZE03
  • Target Gas : Ammonia (NH3)
  • Working Voltage : DC 4 Volts to 9 Volts
  • Working Current : < 5 mA
  • Size : ø23.5 mm x 24.5 mm
  • Working Life : 2 year
  • Output Data : UART Output (TTL electrical level,3 Volts) and Analog Voltage
  • Storage Environment  Temp. : 20~25°C
  • Storage Environment Humidity. : 30%RH-70%RH
  • Operating Environment Temp. : -20~50°C
  • Operating Environment Humidity. : 15%RH-90%RH (no condensation)
  • Detection range :  0 to 100 ppm
  • Voltage output : 0.6 to 3 volts
  • Response Time : ≤150s

Pin definition Of Electrochemical Detection Module ZE03-NH3

  • GND : Ground
  • VCC : Power supply (4 volt to 9 volts)
  • VO : Analog output Voltage
  • RXD : Serial Port Input (3 volts)
  • TXD : Serial port output (3 volts)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
