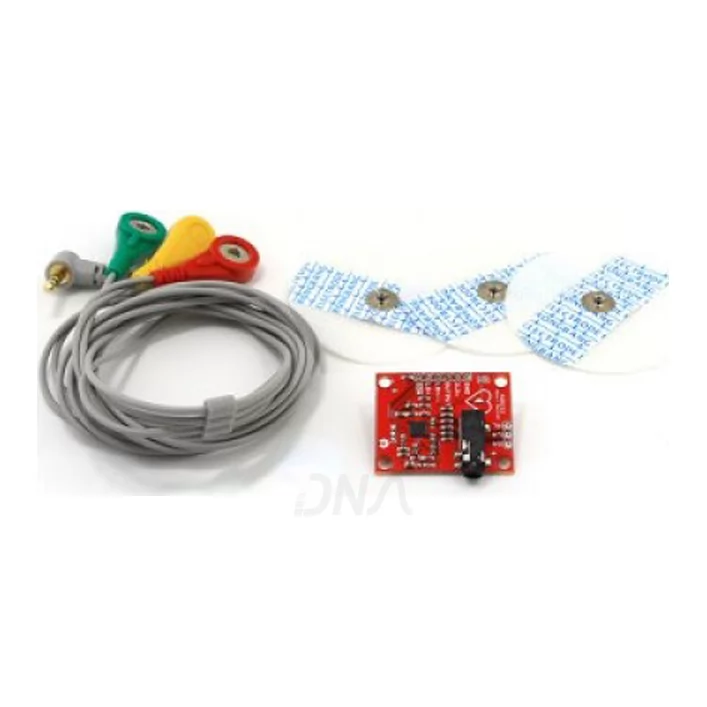

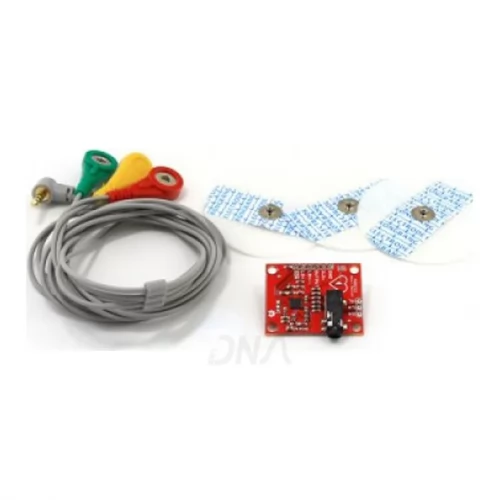

AD8232 ECG Sensor Module

Write a review | 1 reviews

Stock: 1
Availability: InStock priceValidUntil: 2026-07-23
Brand: Generic
SKU: 696 | DAA713

Rs. 660.80 (inc GST)
Rs.560.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

AD8232 ECG Sensor Module

ECG also known as Electrocardiogram is a noninvasive medical procedure to measure the electrical activity of the Heart.

This process of measuring the heart activity is called as Electrocardiography. This ECG Sensor Module measures this activity and gives an output which can be directly connected to a Arduino, Raspberry Pi (via ADC like MCP3008) or any other Micro-controller.

This ECG Sensor Module is based upon Analog Devices Award Winning IC AD8232. Basically AD8232 is an integrated signal conditioning block for ECG and other bio-potential measurement applications. It is designed to extract, amplify, and filter small bio-potential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement. This design allows for an ultralow power analog-to-digital converter (ADC) or an embedded micro-controller to acquire the output signal easily.

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of AD8232 ECG Module

AD8232 adopts double poles high-pass filter to eliminate the motion artifacts and electrode half cell potential
AD8232 adopts an operational amplifier that is without using constraint to build a three pole low pass filter, eliminating extra noises
Rated temp range : 0—70 degree
Working temp range: -40—85 degree

Applications of AD8232 ECG Module

Fitness and sports heart rate monitoring
Portable ECG
Remote health monitor
Game peripheral equipment
Bio-electricity signal collection

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
