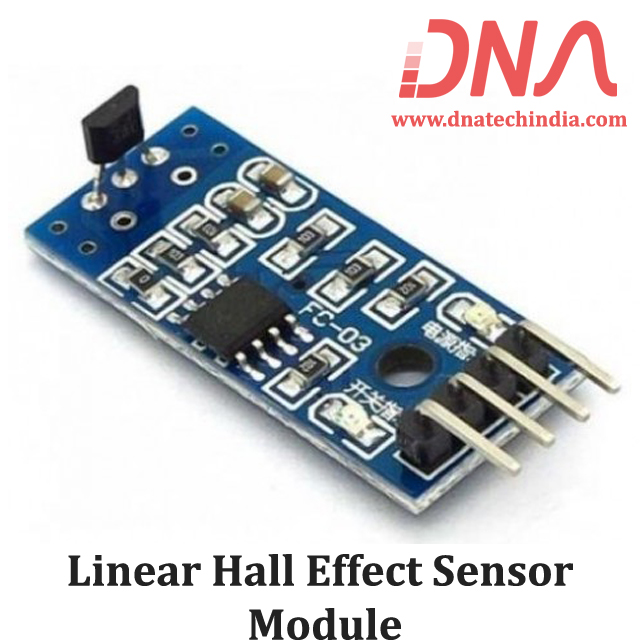

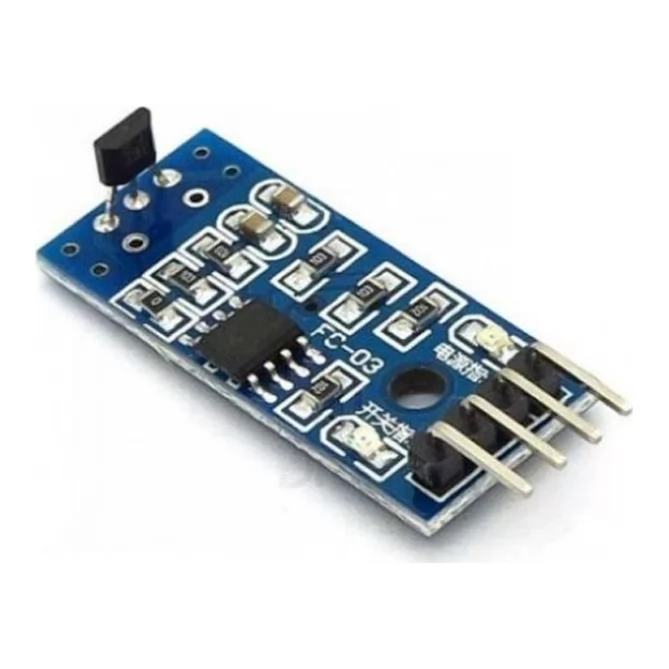

Linear Hall Effect Sensor Module

Comparator Based Linear Hall Effect Sensor Module

This is a Comparator based hall effect sensor Module. This Module is based on S49E linear hall effect sensor. Using this module you can digital as well as linear output.

This module can be used to detect the presence of an magnetic field. If there is an magnetic field present, it will report a high level signal. It can be used in many applications such as RPM sensor (for counting the number of shaft revolutions), Robot speed and distance measurements, door switch and robot arm position sensor. Generally, it can be used for any magnetic field detection.

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features Of Hall Effect Sensor Module

  • S49E hall sensor
  • Features wide range voltage comparator LM393
  • Adjustable sensitivity (potentiometer)
  • Signal output indicator
  • Analog / Digital output

Specifications of Hall Effect Sensor Module

  • Volt : 2.3 Volts to 5.3 Volts
  • Dimension : 27.0mm * 15.5mm
  • Mounting holes size : 2.0mm

Applications of Linear Hall Effect Sensor Module

  • Motor shaft speed measurement (shaft encoder)
  • Object position detection

How to Use

In the case of working with Arduino / microntroller /Raspberry :

  • VCC : 2.3 volts to 5.3 Volts
  • GND : power supply ground
  • AOUT (analog sensor output) : Arduino/ MCU input
  • DOUT (digital sensor output) : Arduino/MCU input
