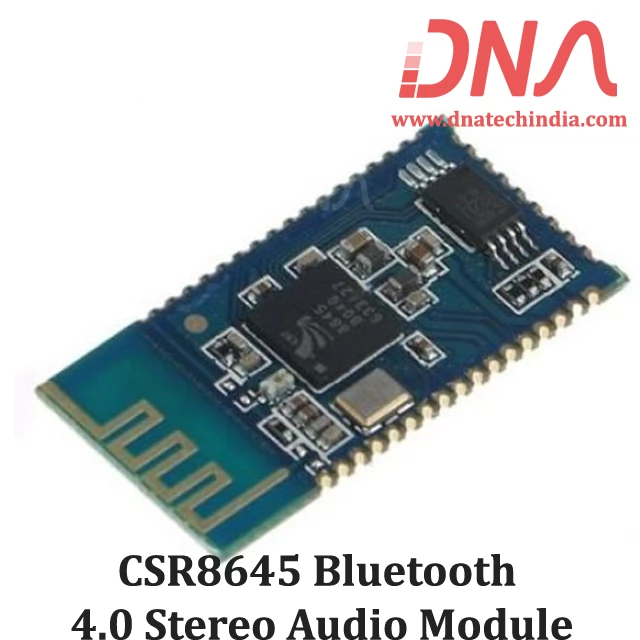

CSR8645 Bluetooth 4.0 Stereo Audio Module

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-10-22
Brand: Generic
SKU: 1852 | DAA780

Rs. 796.50 (inc GST)
Rs.675.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

CSR8645 Bluetooth 4.0 Stereo Audio Module

This Module is based on Qualcomm's CSR8645 Bluetooth Audio Platform IC.

The CSR8645/F3188 is an easy and cost-effective platform for developing wireless audio products and supports reduced development time. It is an ideal solution for a range of highly differentiated home entertainment and wearable audio products including stereo headphones, speakers, speakerphones, headsets and hands-free devices.

We have Various sizes of Communication Modules. Check out our complete collection of Communication Modules.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of CSR8645/F3188 Bluetooth 4.0 Stereo Audio Module

Type : F-3188
Bluetooth Specification : v 4.0
Voltage : DC 3.3 Volts - 4.2 Volts
Bluetooth protocol : HFP V1.6/A2DP V1.2/AVRCP V1.4/HSP V1.2
Working Current : =30mA
Standby Current : <50uA
Temperature range : -40 Celsius ~ +80 Celsius
Wireless transmission range : > 10m
Transmission power : CLASS1/CLASS2/CLASS3,9dbm(MAX)
Sensitivity : -80dBm<0.1%BER
Frequency Range : 2.4GHZ ~ 2.480GHZ
External Interface : PIO/SPI/I2S/PCM/USB
Audio Performance : AAC/MP3/SBC/APTX
Audio SNR : =75dB

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
