Product Images are shown for illustrative purposes only and may differ from actual product.

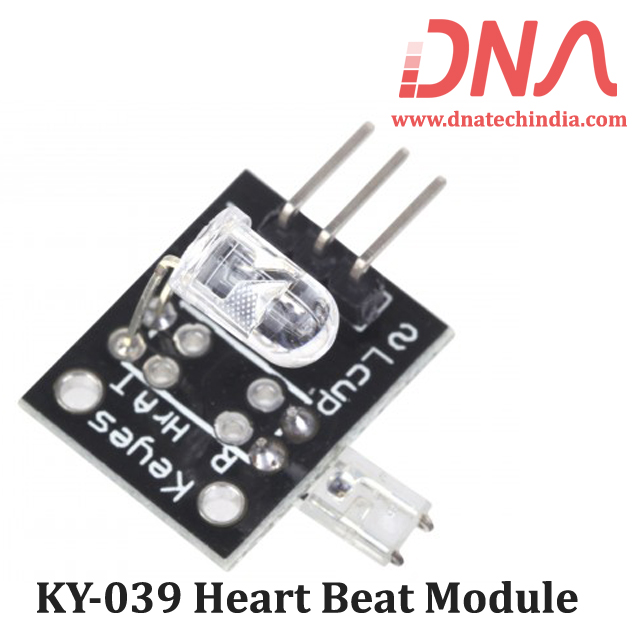

KY-039 Heart Beat Module
- Stock: 18
- Brand: Generic
- SKU: 600 | DAA754
-
Rs. 177.00 (inc GST)
Rs.150.00 + GSTQty :
| Also Available: Nextion Intelligent NX1060P101-011R-I 10.1" Resistive TouchScreen Display in Stock – in stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
KY-039 Heart Beat Module
Finger Detect Heart Beat Module
Ky-039 is a Low cost Heart beat Sensing Module. This Heart beat detection module uses bright infrared (ir) led and a photo-transistor to detect the pulse of the finger, a red led flashes with each pulse. Pulse monitor works as follows: the led is Turned ON on one side of the finger, and photo-transistor is on the other side of the finger. The photo-transistor used to obtain the flux emitted, when the blood flows through the finger then the resistance of the photo-transistor will be vary slightly.
The most important is to keep the shield stray light into the photo-transistor. For home lighting that is particularly important because the lights at home mostly based 50hz or 60hz fluctuate, so faint heartbeat will add considerable noise.
We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Connecting Heart Beat Module to Arduino
- Sensor pin S connect to Arduino pin Analog 0 / A0
- Sensor pin + (middle pin) connect to Arduino pin 5+
- Sensor pin - connect to Arduino pin GND
