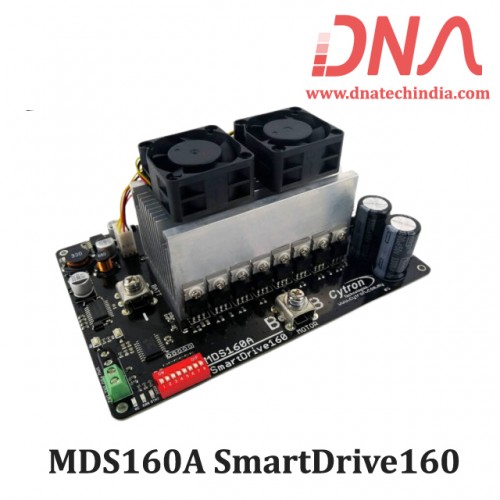

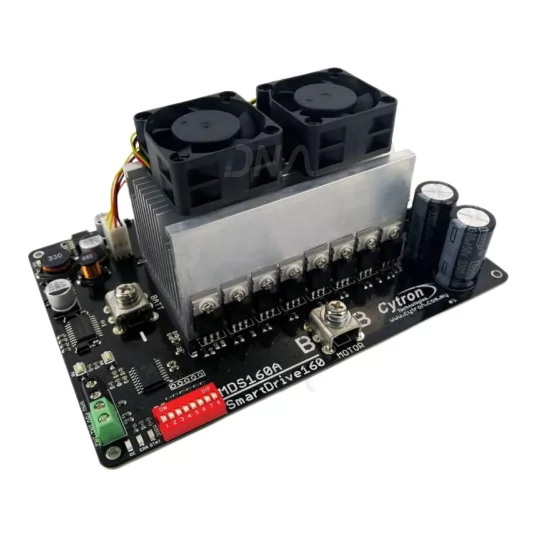

Cytron MDS160A SmartDrive160 160AMP Dc Motor Driver (Peak 190Amp)


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-09-18

  • Brand: Cytron
  • SKU: 2275 |

Availability: NotInStock priceValidUntil: 2026-09-18

  • Rs. 19,845.00 (inc GST)
    Rs.16,817.80 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Cytron MDS160A SmartDrive160 160AMP Dc Motor Driver (Peak 190Amp)

160Amp 8V-28V SmartDrive DC Motor Driver

We know DC brushed motor is widely used for many different applications; from conveyor, AGV (Automated Guide Vehicle), mobile robot and combat robot. One of the reasons is the ease to use it, just connect the two terminals of motor to DC power respectively, it will start rotating, so simple. Yet, to control the speed and direction from a controller, a motor driver is needed.

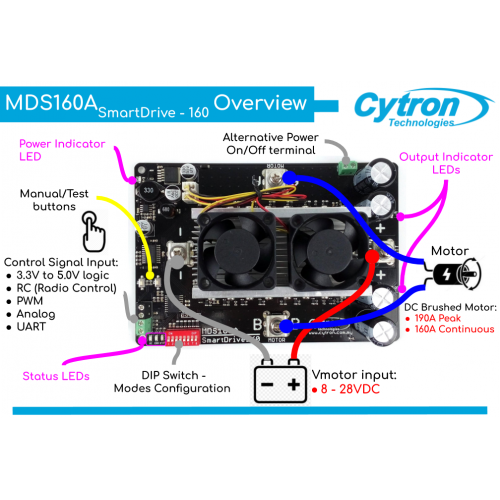

It is one of the latest smart series motor drivers. On board high current MOSFETs are switched at 16 KHz to ensure quiet operation and no annoying whining sound. And using MOSFETs eliminate the need for additional flyback diodes. Besides, it also equipped with a microcontroller unit to provide smart features such as multiple input mode, current limiting and thermal protection. SmartDrive160 can also be hooked up with another similar unit and operates in pair. This make driving a robot with differential drive a truly plug and play experience.

Note: Normal wire cannot survives 160A or even 100A, so get the thickest possible wire for both the Vmotor and Motor. We are using 2 to 3 8AWG cable (Black and Red), for each terminal.

We have Various sizes of Cytron. Check out our complete collection of Cytron.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features:

  • Bi-directional control for a single brushed DC motor.
  • Support input voltage from 8V to 28V.
  • 16 KHz switching frequency for quiet operation.
  • LiPo battery low voltage warning.
  • Full Solid State component (MOSFETs) for switching. No additional fly back diodes needed.
  • Regenerative Braking.
  • NO Reverse Polarity Protection for Vmotor, please double check the connection!
  • Thermal protection.
  • On board push buttons for fast test and manual operation.
  • Dimension: 122mm x 178mm x 75mm

Packing List:

  • 1 x MDS160A
