Product Images are shown for illustrative purposes only and may differ from actual product.

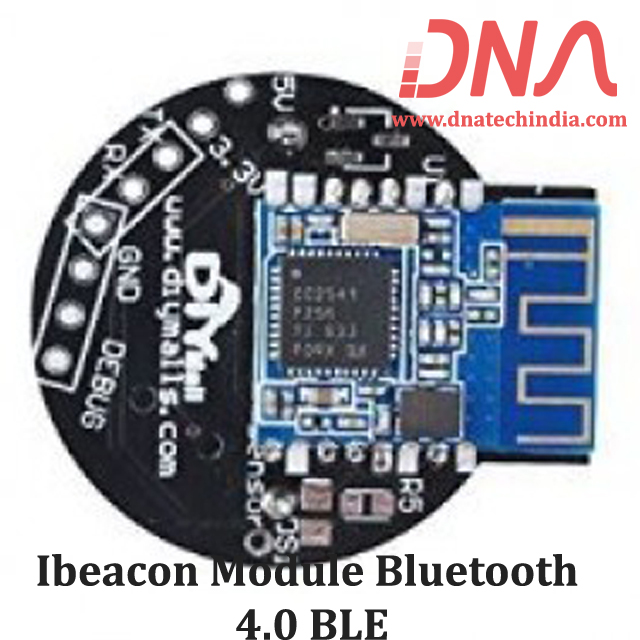

Ibeacon Module Bluetooth 4.0 BLE

  • Product Code: 691
  • Availability: Out Of Stock
  • Price :

    Rs.1,178.82 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

Ibeacon Module Bluetooth 4.0 BLE


This module is for apple iOS 7.0 or android 4.3+,bluetooth 4.0+

  • BT Version: Bluetooth Specification V4.0 BLE Send and receive no bytes limit.

  • Working frequency: 2.4GHz ISM band

  • Modulation method: GFSK(Gaussian Frequency Shift Keying)

  • RF Power: -23dbm, -6dbm, 0dbm, 6dbm, can modify through AT Command AT+POWE.

  • Speed: Asynchronous: 6K Bytes

  • Synchronous: 6K Bytes

  • Security: Authentication and encryption

  • Service: Central & Peripheral UUID FFE0,FFE1

  • Power: +3.3VDC 50mA

  • Long range: Open space have 100 Meters with iphone4s

  • Power: In sleep mode 400uA~1.5mA, Active mode 8.5mA.

  • Working temperature:-5 ~ +65 Centigrade

  • Size: 24.8mm x 24.8mm, thickness 7.5mm

  • Battery type:CR2032

You can customize your own iBeacon configuration including UUID etc


Features of Ibeacon Module Bluetooth 4.0 BLE

  • Tested with iOS 7.0

  • Based on TI's CC2541. Range is 30M

  • Support firmware upgrade

  • Support payment interface

  • Support broadcast read the battery level, temperature, humidity acquisition, without connecting module


Applications of Ibeacon Module Bluetooth 4.0 BLE

  • Support firmware upgrade

  • Support payment interface

  • Support broadcast read the battery level, temperature, humidity acquisition, without connecting module


Package Included:

  • 1 X iBeacon Module Bluetooth 4.0 BLE
