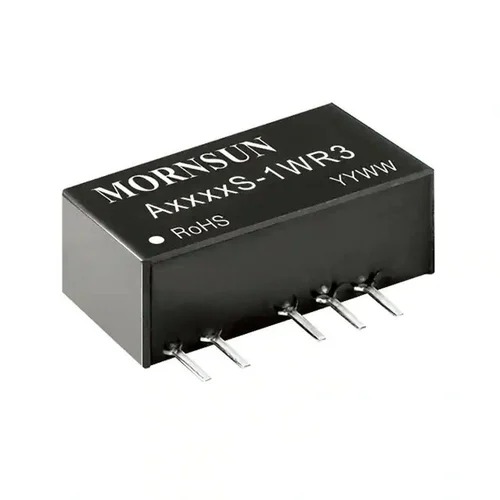

MORNSUN A1205S-1WR3 Isolated DC/DC Converter Module

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Mornsun
  • SKU: 7632 | DAH485

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 218.06 (inc GST)
    Rs.184.80 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MORNSUN A1205S-1WR3 Isolated DC/DC Converter Module

MORNSUN A1205S-1WR3 isolated DC/DC converter module with 12 VDC input, unregulated dual ±5 VDC outputs, 1 W power and 1500 VDC isolation.

The MORNSUN A1205S-1WR3 is an isolated DC/DC converter module that converts a nominal 12 VDC input into unregulated dual ±5 VDC outputs. It delivers up to 1 W of output power for low-power circuits that need both positive and negative supply rails.
Input-to-output isolation helps separate the power domains in a design. The module also has continuous short-circuit protection with self-recovery, so it can resume operation after a short-circuit fault is removed. Its compact case supports integration into space-limited equipment.
Use this dual-output converter in pure digital circuits, low-frequency analog circuits, relay-driven circuits and data-switching circuits. Its isolated outputs suit designs that need separate supply rails for these circuit functions.
DNA supplies MORNSUN modules for electronics buyers working with DC to DC Converter Modules. Contact our team for product availability and help choosing a suitable module. Check other DC to DC Converter Modules that we have in stock
Indian electronics buyers can contact DNA if they cannot find a part. We offer import support and help with both retail and bulk orders. Ask us about related items such as sensors, diodes or crystals. Contact Us

Features of MORNSUN A1205S-1WR3 Isolated DC/DC Converter Module

  • Isolated power conversion separates input and output power domains
  • Dual outputs provide positive and negative supply rails
  • Continuous short-circuit protection with self-recovery
  • Flame-retardant, heat-resistant case
  • Compact module format for board-level integration

Specifications of MORNSUN A1205S-1WR3 Isolated DC/DC Converter Module

  • Nominal input voltage: 12 VDC (operating range: 10.8–13.2 VDC)
  • Output voltage: Dual ±5 VDC, unregulated
  • Output current: ±100 mA maximum
  • Output power: 1 W
  • Full-load efficiency: 76% minimum, 80% typical
  • Input-to-output isolation test voltage: 1500 VDC minimum for 1 minute
  • Operating temperature: -40°C to 105°C (power derating applies from 100°C for 12 VDC input)
  • Dimensions: 19.65 × 6.00 × 10.16 mm

Applications of MORNSUN A1205S-1WR3 Isolated DC/DC Converter Module

  • Pure digital circuits
  • Low-frequency analog circuits
  • Relay-driven circuits
  • Data-switching circuits

Related Links for MORNSUN A1205S-1WR3 Isolated DC/DC Converter Module

Package Includes

  • 1 X MORNSUN A1205S-1WR3 Isolated DC/DC Converter Module
Extra Information
Country of Origin China
