Product Images are shown for illustrative purposes only and may differ from actual product.

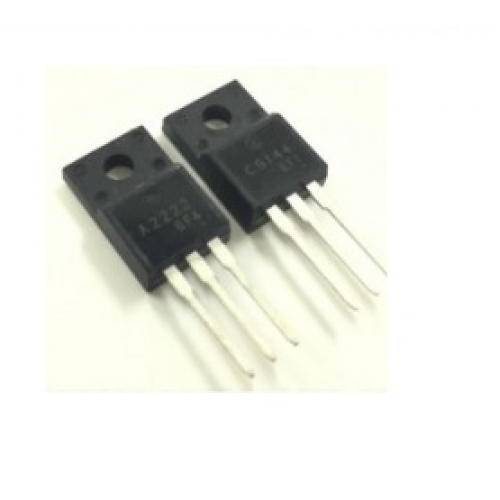

2SA2222 PNP Power Transistor TO-220F Package
- Stock: 18
- SKU: 10019 | DAJ009
-
Rs. 88.50 (inc GST)
Rs.75.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
2SA2222 PNP Power Transistor TO-220F Package
2SA2222: PNP Power Transistor for High-Current, Low VCE(sat) Switching
The 2SA2222 Transistor is a PNP bipolar power device designed for high-current, low-loss switching. With a collector-emitter voltage rating of 50 V and continuous collector current up to 10 A, the 2SA2222 is well-suited for relay, lamp, and motor drivers. Its low VCE(sat) and fast switching enable efficient operation in compact power circuits. The device comes in a TO-220F (fully-isolated) package for improved thermal handling and simplified mounting.
DNA is a trusted supplier of MOSFETs and power transistors in India, offering retail and bulk purchase options. We stock popular electronic components like BJTs, MOSFETs, and rectifier diodes, available for fast dispatch across India.
Can’t find the exact transistor or Electronic Component? Our team can help you source it, click here to contact us.
Features of 2SA2222 Transistor
- PNP bipolar power transistor
- High continuous collector current: 10 A
- Low collector-emitter saturation voltage: VCE(sat) ≈ 250 mV type (at IC=6 A, IB=300 mA)
- High-speed switching (tf ≈ 22 ns type)
- Fully-isolated TO-220F-3FS package
- Ideal for relay, lamp, and motor driver applications
Specifications of 2SA2222 Transistor
- Transistor Type: PNP BJT
- Collector-to-Base Voltage (VCBO): 50 V
- Collector-to-Emitter Voltage (VCEO): 50 V
- Emitter-to-Base Voltage (VEBO): 6 V
- Continuous Collector Current (IC): 10 A
- Peak Collector Current (ICP): 13 A
- DC Current Gain (hFE): 150 to 450 (VCE=2 V, IC=0.27 A)
- Collector-Emitter Saturation (VCE(sat)): 0.25 V type, 0.5 V max (IC=6 A, IB=300 mA)
- Gain-Bandwidth Product (fT): 230 MHz (VCE=10 V, IC=1 A)
- Output Capacitance (Cob): 115 pF (VCB=10 V, f=1 MHz)
- Collector Dissipation (PC): 25 W (Tc=25 °C, PT≤1 s)
- Junction Temperature (Tj): 150 °C
- Package: TO-220F-3FS (JEITA/JEDEC: SC-67)
Applications of 2SA2222 Transistor
- Relay drivers
- Lamp/LED drivers
- Motor drivers
- General-purpose high-current switching
Related Links
Package Include
- 1 x 2SA2222 PNP Power Transistor (TO-220F)
