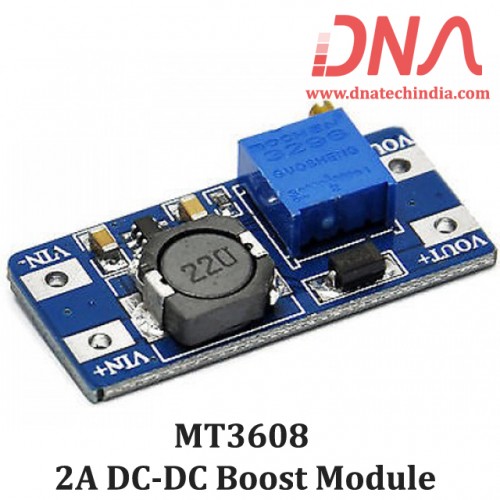

MT3608 2A DC-DC Boost Module

The MT3608 DC-DC Boost module is based upon MT3608 high efficient 1.2Mhz 2 Ampere step up convertor.

The MT3608 features automatic shifting to pulse frequency modulation mode at light loads. The MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload.

We have Various sizes of DC to DC Converter Modules. Check out our complete collection of DC to DC Converter Modules.

Specification of MT3608 2A DC-DC Step Up Booster Module

• The maximum output current : 2 a

• The input voltage : 2 v ~ 24 v

• The maximum output voltage : 28 v

• Efficiency : 93%

• (Minimum) (input-output) difference voltage when input is at (2V and 50% of max-input-V), loading at (50% and 100% rated current).

• product size : 36 mm * 17 mm * 14 mm

• The input voltage should not exceed the maximum input voltage

• The peak current output current is no more than TV university

Method of use

• The module of the IN+ and - after 2~24v, IN adjusting the potentiometer can adjust output voltage, output voltage is greater than the input voltage.
