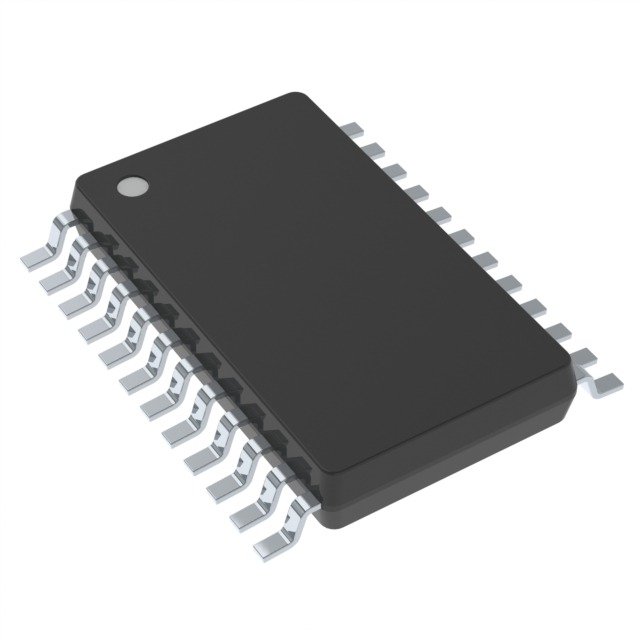

Product Images are shown for illustrative purposes only and may differ from actual product.

Nexperia 74HC4067PW,118 16-Channel Analog Multiplexer/Demultiplexer


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-11-05

  • Brand: Nexperia
  • SKU: 11337 | DAH598

Availability: NotInStock priceValidUntil: 2026-11-05

  • Rs. 141.60 (inc GST)
    Rs.120.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Nexperia 74HC4067PW,118 16-Channel Analog Multiplexer/Demultiplexer

Nexperia 74HC4067PW,118 is a 16-channel analog multiplexer/demultiplexer with a 2.0 V to 10.0 V supply range and a 24-lead TSSOP package.

The Nexperia 74HC4067PW,118 is a 16-channel analog multiplexer that connects one of 16 signal paths to a shared terminal. It can also route a signal in the reverse direction. Its 2.0 V to 10.0 V supply range supports a range of logic supply designs.

Four CMOS select inputs set the channel, and an active-LOW enable input controls the switch bank. Typical break-before-make switching helps prevent two paths from connecting at once during channel changes. The 24-lead TSSOP package suits compact circuit layouts.

Use this device for analog or digital multiplexing, demultiplexing and signal gating. It helps a design select among multiple signal paths with one integrated switch.

DNA offers Nexperia 7400 Series IC's for circuit design and component sourcing. Browse this category to find logic parts for your projects. Check other 7400 Series IC's that we have in stock

If you cannot find the part you need, contact DNA for import support and retail or bulk orders. You can also ask about related items such as development boards, HMI displays and DC to DC converter ICs. Contact Us

Features of Nexperia 74HC4067PW,118 16-Channel Analog Multiplexer/Demultiplexer

  • Sixteen independent bidirectional switch channels connect to a common terminal
  • Four select inputs choose the active channel
  • Active-LOW enable input disables all switches when HIGH
  • CMOS-level control inputs
  • Typical break-before-make switching
  • Input clamp diodes

Specifications of Nexperia 74HC4067PW,118 16-Channel Analog Multiplexer/Demultiplexer

  • Supply voltage: 2.0 V to 10.0 V
  • Switch voltage: GND to VCC
  • Peak ON resistance: 180 Ω maximum at VCC = 4.5 V, ISW = 1000 µA and 25 °C
  • Operating ambient temperature: −40 °C to +125 °C
  • Package: TSSOP24, 24 leads
  • Package body width: 4.4 mm
  • Propagation delay: 9 ns typical, 15 ns maximum from Yn to Z at VCC = 4.5 V, CL = 50 pF and 25 °C

Applications of Nexperia 74HC4067PW,118 16-Channel Analog Multiplexer/Demultiplexer

  • Analog multiplexing and demultiplexing
  • Digital multiplexing and demultiplexing
  • Signal gating

Related Links for Nexperia 74HC4067PW,118 16-Channel Analog Multiplexer/Demultiplexer

Package Includes

  • 1 X Nexperia 74HC4067PW,118 16-Channel Analog Multiplexer/Demultiplexer
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
