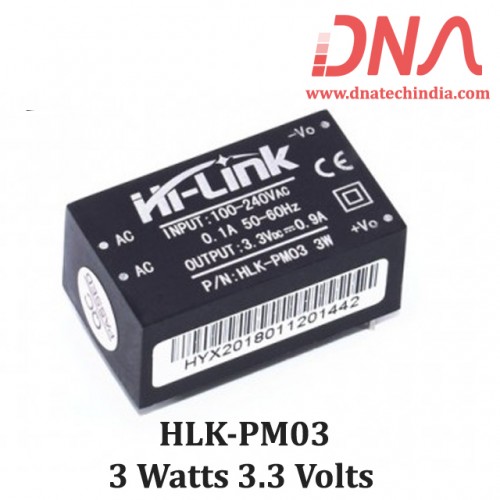

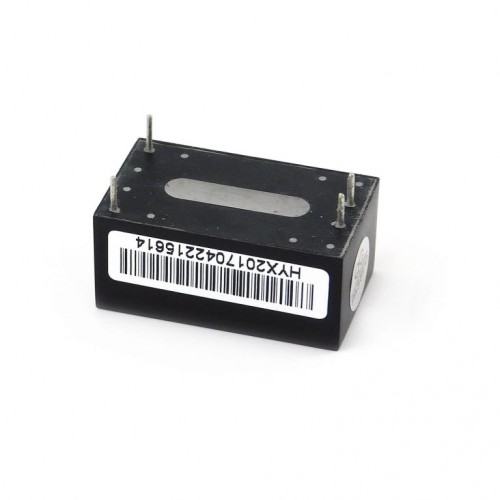

Hi-Link HLK-PM03 3.3 V AC-DC Isolated Power Supply Module

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-12-15

  • Brand: Hi-Link
  • SKU: 667 | DAB335

Availability: InStock priceValidUntil: 2026-12-15

  • Rs. 254.88 (inc GST)
    Rs.216.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Hi-Link HLK-PM03 3.3 V AC-DC Isolated Power Supply Module

Hi-Link HLK-PM03 isolated AC-DC module delivers 3.3 V at 1 A, with 3 W rated output, 85–265 Vac input and automatic short-circuit recovery.

The Hi-Link HLK-PM03 is an isolated AC-DC power supply module that converts AC input into a 3.3 V DC output. It supplies up to 1 A, with a rated output power of 3 W, for boards that need a compact power source. Its 85–265 Vac input range supports a range of AC supply conditions.
The module uses input-to-output isolation and plastic potting that meets IP65 standards. Short-circuit protection restores normal operation after the fault clears, while over-current protection helps manage excess output load. These features suit smart home controls, automation control systems, communications equipment and instrumentation. Its compact form helps place an AC-DC supply close to the circuit it powers.
DNA supplies Hi-Link modules for engineers and electronics buyers in India. Explore the Hi-Link Power Supply Module range for compact AC-DC conversion needs. Check other Hi-Link Power Supply Module that we have in stock
If you cannot find a part, contact DNA for import support and retail or bulk orders in India. Ask us about related Digital IC, SMPS, Connectors, Analog IC, MOSFET or Inductor parts. Contact Us

Features of Hi-Link HLK-PM03 3.3 V AC-DC Isolated Power Supply Module

  • Isolated AC-to-DC conversion
  • Short-circuit protection with automatic recovery
  • Output over-current protection
  • Plastic potting that meets IP65 standards
  • Four-pin AC input and DC output layout

Specifications of Hi-Link HLK-PM03 3.3 V AC-DC Isolated Power Supply Module

  • Rated output voltage: 3.3 Vdc (3.3 ±0.1 V at no load)
  • Rated output current: 1000 mA
  • Rated output power: 3 W
  • Input voltage: 85–265 Vac or 70–350 Vdc
  • Full-load efficiency: ≥72% at 115 Vac and 230 Vac
  • Output ripple and noise: ≤100 mVp-p at rated input and full load, with 20 MHz bandwidth and 10 µF and 0.1 µF load-side capacitors
  • Operating temperature: −25 to +60 °C

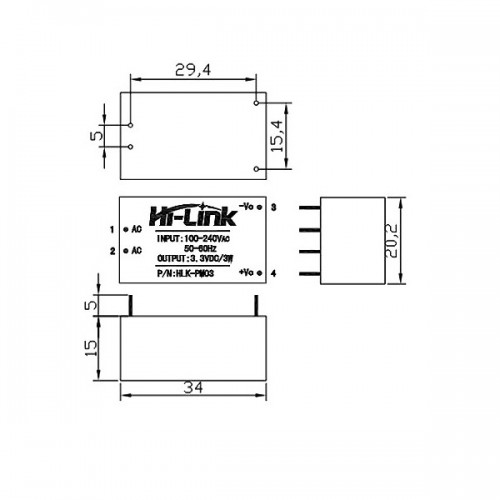

  • Module dimensions: 34 × 20 × 15 mm

Applications of Hi-Link HLK-PM03 3.3 V AC-DC Isolated Power Supply Module

  • Smart home
  • Automation control
  • Communications equipment
  • Instrumentation

Related Links for Hi-Link HLK-PM03 3.3 V AC-DC Isolated Power Supply Module

Package Includes

  • 1 X Hi-Link HLK-PM03 3.3 V AC-DC Isolated Power Supply Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
