10.1" Nextion Intelligent Series HMI Resistive TouchScreen Display

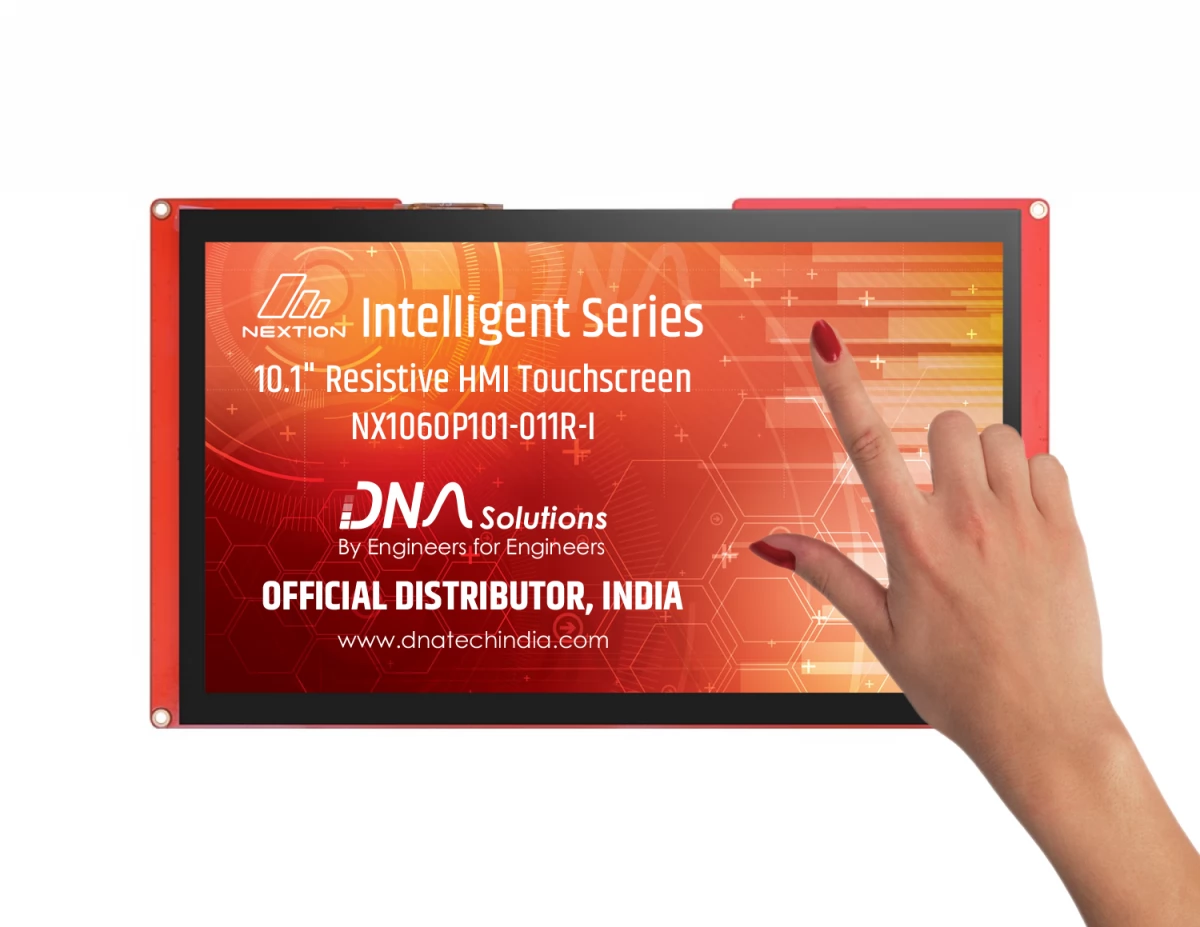

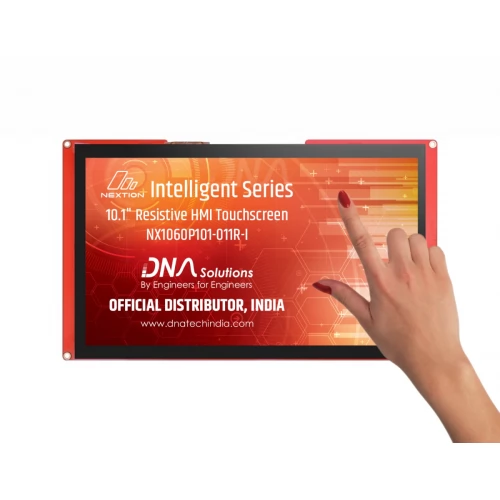

Nextion Intelligent Series NX1060P101-011R-I is Intelligent series 10.1'' Resistive HMI touchscreen without enclosure.

NX1060P101-011R-I is a 10.1" Nextion Display with Resistive touchscreen display. This display is from the Newly launched Intelligent series and is very easy to use and can be interfaced to your Microcontroller using simple UART port. This is a first 10" display which can be easily interfaced to any Microcontroller using just 2 wires.

Nextion Intelligent is a Human Machine Interface (HMI) solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.

The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.P101-011C-I is Intelligent series 10.1'' capacitive HMI touchscreens without enclosure.

Hardware Features for NX1060P101-011R-I 10" HMI Display

• NX1060P101-011R-I (10.1'' IPS RGB 65K resistive touchscreen)
• Onboard MCU 200MHz and up to 128MB for HMI project
• Built-in RTC，EEPROM, 8 digital GPIOs (2 PWM capable)
• 4 pins (+5V, TX, RX, GND) TTL serial interface
• 300 nit Brightness with 1% interval adjustment
• Audio interface
• CE and RoHS Compliant
• Model: NX1060P101-011R-I(HMI Resistive Touch Display)

Software  Features For NX1060P101-011R-I 10 inch Touchscreen Display

• Support audio resource.
• Support video resource.
• Support PNG picture resource.
• Component Transparency attribute.
• Support Animation  resource.
• Component  and page loading effect.

ADDITIONAL INFORMATION For NX1060P101-011R-I

• Display Resolution : 1024 * 600

• Display Interface : Serial

• Screen Type : Touch Screen

• Display Controller : No

• TFT display interface: N/A

• Display Size : 10.1”

• Board Size : 258mm*152mm*11.5mm

• Expand : SD Card Socket/Touch Screen

• Weight : 712 g

In The Box For NX1060P101-011R-I

• NX1060P101-011R-I HMI Display*1
• XH2.54 4P Wire*1
• Power Supply Test Board*1

NX1060P101-011R-I  Certification and Documents

• Datasheet
• Dimension
• Instruction Set
• Editor Guide
• LTA Announcement
• CE CertificationROHS Certification

Nextion Technical Support

• Nextion Community Forum
• Enhanced Support
