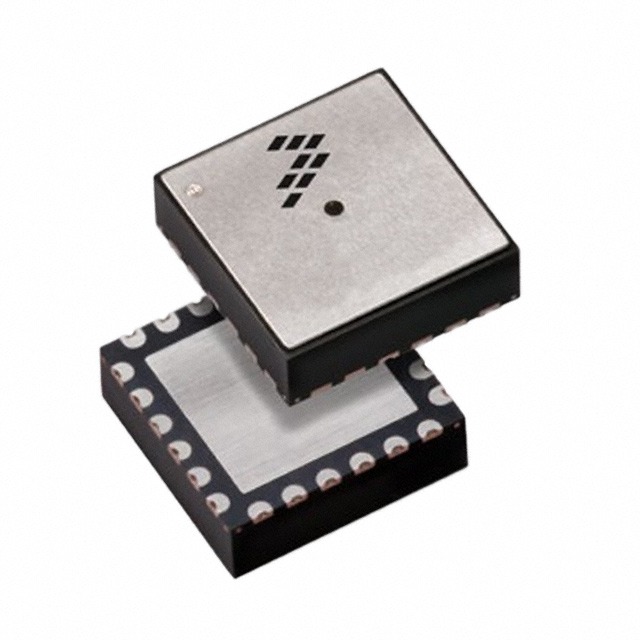

FXTH8715117T1 Pressure Sensor

FXTH8715117T1 Pressure Sensor

FXTH8715117T1 SMD IC for TPMS, integrated sensors, low power design, high precision up to 1500 kPa.

The FXTH8715117T1 Pressure Sensor is a robust SMD IC designed for tire pressure monitoring systems (TPMS) in heavy-duty vehicles. This device integrates a pressure sensor, a temperature sensor, and a dual-axis accelerometer in a compact package, ensuring accurate monitoring of tire pressure levels. With a precision range of 100 kPa to 1500 kPa, it meets the demands of automotive applications effectively.

This sensor features an embedded 8-bit S08 core microcontroller with 512 bytes of RAM and 8 KB of flash memory for application development. The FXTH8715117T1 supports wireless data transmission through an internal RF transmitter operating at 315/434 MHz, utilizing On-Off Keying (OOK) and Frequency Shift Keying (FSK) modulation. Its low-power design incorporates a wake-up timer that optimizes energy usage without compromising performance.

Ideal for applications in the automotive sector, the FXTH8715117T1 Pressure Sensor ensures high-precision measurements and reliable performance. Its thermally enhanced QFN-EP-24 package allows for easy inspection during installation, making it a preferred choice for engineers and automotive professionals looking for quality and reliability in tire pressure monitoring.

At DNA, we offer a range of products from NXP Semiconductors in the Wireless - RF category. Explore our selection of high-quality electronic components designed for efficient performance. Check other "Wireless - RF" that we have in stock.

Are you looking for specific electronic components? At DNA, we can help you find what you need. We can also import parts that are not readily available. Our inventory includes Sensors, Super Capacitors, Sensor Modules, Nextion Displays, Resistors, and Development Modules. Contact Us.

Features of FXTH8715117T1 Pressure Sensor

• Integrated pressure and temperature sensors
• Dual-axis accelerometer
• Low power consumption
• High precision pressure measurement
• Wireless RF transmission

Specification of FXTH8715117T1 Pressure Sensor

• Pressure range: 100 kPa to 1500 kPa
• Embedded 8-bit S08 microcontroller
• 512 bytes RAM
• 8 KB flash memory
• QFN-EP-24 package

Applications of FXTH8715117T1 Pressure Sensor

• Tire pressure monitoring systems
• Automotive sensors
• Heavy-duty vehicle applications
• Wireless sensor networks

Related Links for FXTH8715117T1 Pressure Sensor

• Other Products from Wireless - RF Category

Package Includes

• 1 X FXTH8715117T1 Pressure Sensor
