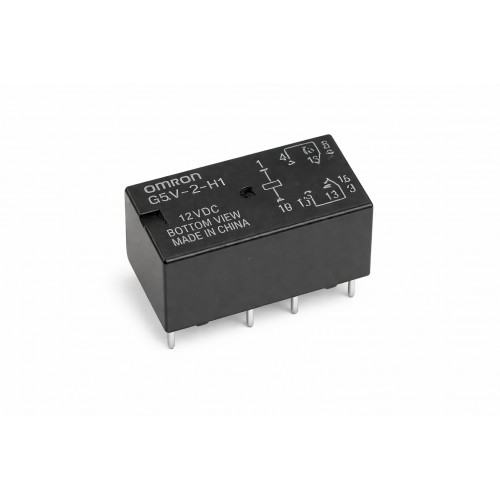

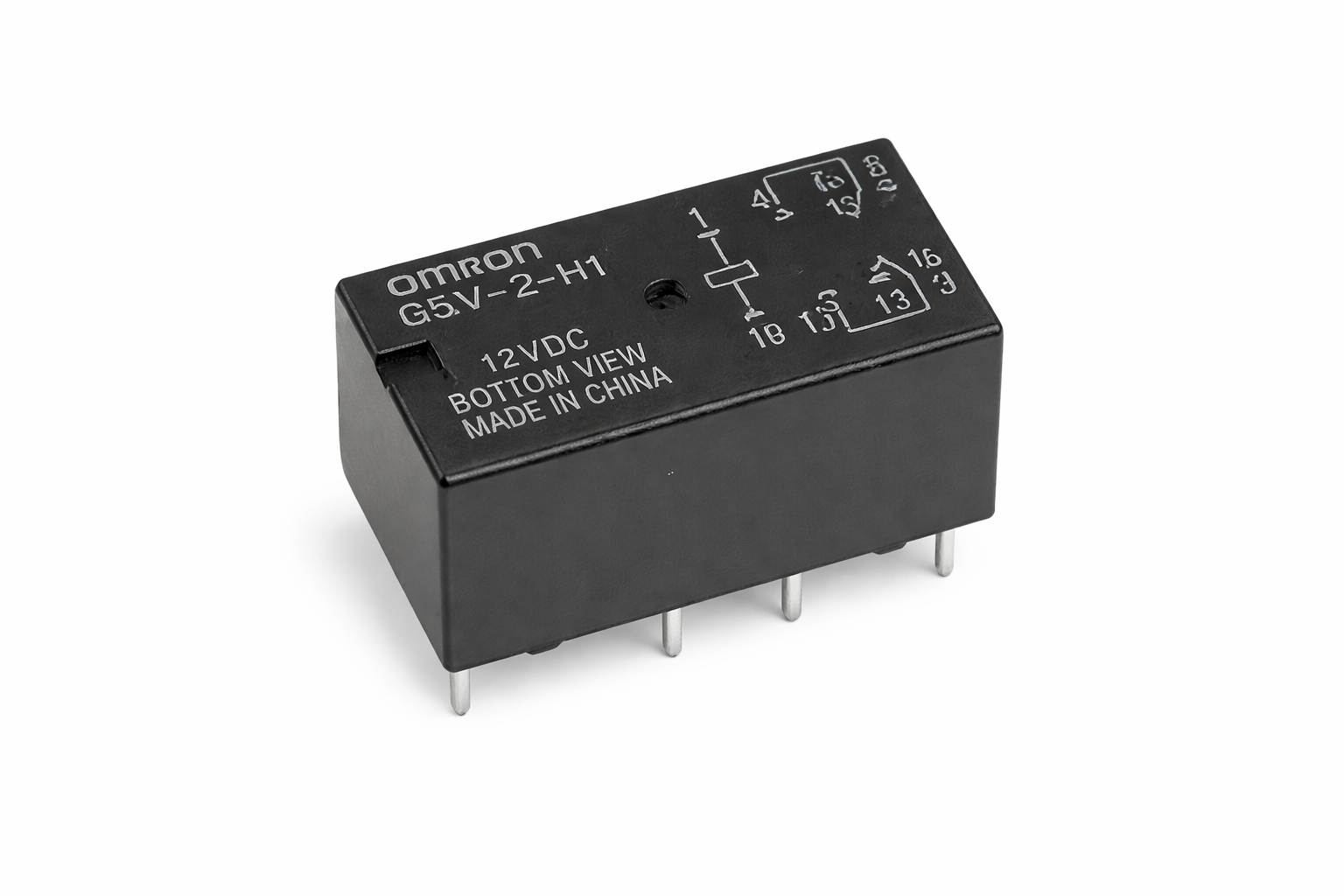

Omron G5V-2-H-DC12 High-Sensitivity DPDT Low-Signal Relay

G5V-2-H-DC12 high-sensitivity DPDT low-signal relay with a 12 VDC coil, 2 A at 30 VDC rated contact load, and fully sealed construction.

The Omron G5V-2-H-DC12 is a high-sensitivity DPDT low-signal relay for switching electrical loads. Its 12 VDC coil operates the contacts, which are rated for 2 A at 30 VDC with a resistive load. The DPDT form lets one relay switch two circuits.
Fully sealed construction keeps the contact system enclosed. Bifurcated crossbar contacts and silver contacts with gold cladding support low-signal switching. The coil uses about 360 mW, a useful design point for control circuits where coil power matters.
Use this relay in computer peripherals, telecommunications equipment and security equipment. Its two-pole switching function suits designs that need to control separate circuits from one relay.
DNA stocks Omron components for engineers, repair teams and electronics buyers. Explore the Omron range in Relay, Relay Socket & SSR for switching and control designs. Check other Relay, Relay Socket & SSR that we have in stock
Indian electronics buyers can contact DNA if a part is hard to find. We can support imports and retail or bulk orders for components such as power supplies, connectors and microcontrollers. Contact Us

Features of Omron G5V-2-H-DC12 High-Sensitivity DPDT Low-Signal Relay

  • Fully sealed construction
  • Bifurcated crossbar contact design
  • High-sensitivity relay type
  • DPDT contact form switches two circuits
  • Silver contacts with gold cladding

Specifications of Omron G5V-2-H-DC12 High-Sensitivity DPDT Low-Signal Relay

  • Contact configuration: DPDT
  • Coil rated voltage: 12 VDC, high-sensitivity type
  • Coil rated current: 30 mA at 12 VDC, measured at 23°C with ±10% tolerance
  • Rated contact load: 0.50 A at 125 VAC or 2 A at 30 VDC, resistive load with power factor 1
  • Maximum switching capacity: 62.50 VA or 60 W
  • Operating/storage temperature: -25°C to 70°C
  • Mechanical service life: Minimum 15 million operations at 36,000 operations/hour
  • Maximum dimensions: 20.5 × 10.1 × 11.5 mm

Applications of Omron G5V-2-H-DC12 High-Sensitivity DPDT Low-Signal Relay

  • Computer peripherals
  • Telecommunications equipment
  • Security equipment

Related Links for Omron G5V-2-H-DC12 High-Sensitivity DPDT Low-Signal Relay

Package Includes

  • 1 X Omron G5V-2-H-DC12 High-Sensitivity DPDT Low-Signal Relay
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
