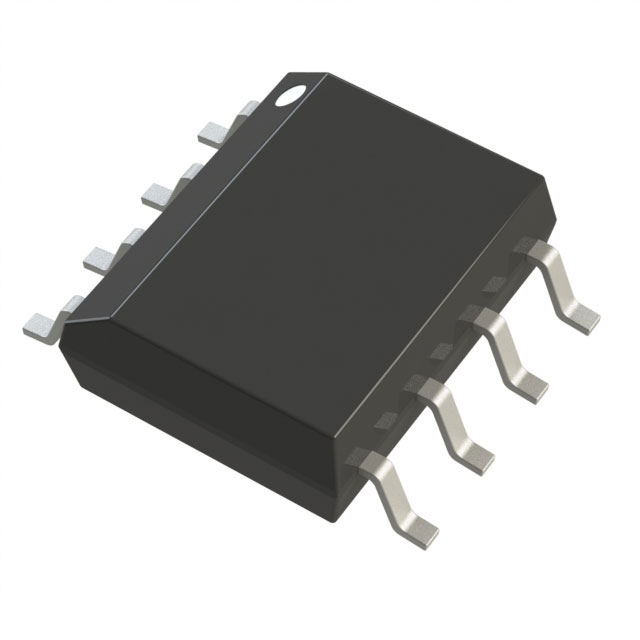

OP177GSZ Amplifier SMD IC

OP177GSZ Amplifier SMD IC

The OP177GSZ is a high-precision, low-drift operational amplifier known for ultra-low offset voltage and excellent long-term stability. It offers superior performance in high-accuracy analog applications, such as instrumentation and sensor interfaces. With a typical offset voltage of just 25 µV and a low input bias current, the OP177 is ideal for precision signal conditioning. It operates with single or dual supplies from ±2V to ±18V and is housed in a compact SOIC-8 surface-mount package. This makes it well-suited for space-constrained precision analog designs.

DNA solutions, Nashik has various types of Amplifier IC's. Check out our complete collection of Amplifier IC's.

• Ultra-low input offset voltage: typically 25 µV (max 75 µV)

• Excellent long-term stability: less than 0.3 µV/month

• Low input bias current: typically 2 nA

• High common-mode rejection ratio (CMRR): typically 114 dB

• High power supply rejection ratio (PSRR): typically 120 dB

• Low input voltage noise: 0.1 Hz to 10 Hz - excellent for low-frequency applications

• Wide supply range: ±2V to ±18V or 4V to 36V (single or dual supply)

• Unity-gain stable with low distortion

• Low offset voltage drift: 0.3 µV/°C y pical

• Surface-mount SOIC-8 package

Specifications of OP177GSZ Amplifier SMD IC

• Offset Voltage: 25 µV

• Input Bias Current: 2 nA

• Gain Bandwidth Product: 600 kHz

• Supply Voltage Range: ±2V to ±18V

• Operating Temperature: -40°C to +85°C

• Package Type: SOIC-8

Applications of OP177GSZ Amplifier SMD IC

• High-accuracy instrumentation

• Strain gauge and bridge amplifiers

• Low-drift data acquisition systems

• High-resolution ADC/DAC buffering

• Weigh scales and force measurement systems

Package Includes

      1 x OP177GSZ Amplifier SMD IC
