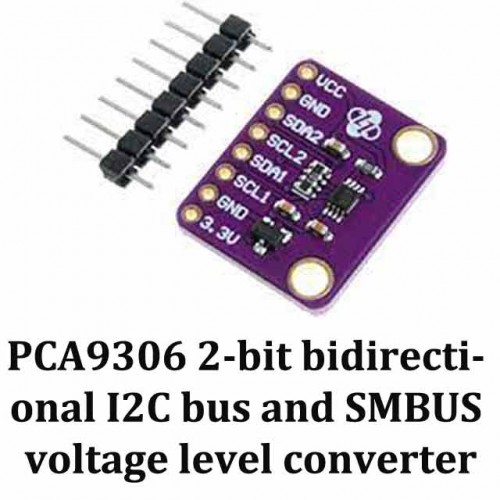

PCA9306 2 Bit Bidirectional I2C Bus And SMBUS Voltage Level Converter

Write a review | 1 reviews

Stock: 2
Availability: InStock priceValidUntil: 2026-11-27
SKU: 3272 | DAD358

Rs. 391.76 (inc GST)
Rs.332.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

PCA9306 2-Bit Bidirectional I2C Bus Voltage Level Converter

PCA9306 offers I2C voltage translation from 1.2V to 5.5V with dual bidirectional support.

The PCA9306 2-Bit Bidirectional I2C Bus Voltage Level Converter is designed for seamless voltage translation between I2C and SMBus systems. This device operates between 1.2V to 3.3V for VREF1 and 1.8V to 5.5V for VREF2, enabling flexible connections without needing a direction pin. Ideal for interfacing different voltage levels in your electronic projects, the PCA9306 ensures reliable communication across various devices.

This voltage level converter supports standard and fast-mode I2C protocols, making it suitable for a wide range of applications. Its dual bidirectional capability simplifies the design process, allowing for easy integration into existing systems. The PCA9306 is particularly useful in mixed-voltage environments, where devices operate at different voltage levels.

For engineers and hobbyists in India, the PCA9306 2-Bit Bidirectional I2C Bus Voltage Level Converter is a must-have component for reliable voltage translation. Explore this product and elevate your electronic designs with efficient connectivity and performance.

At DNA, we offer a variety of high-quality Modules from leading manufacturers. Discover the PCA9306 and enhance your projects. Check other Modules that we have in stock.

If you're seeking specific electronic components, reach out to us. We can help you find parts like IGBT, Inductor, Analog IC, Power Supply, Nextion Display, and LCD. We also support retail and bulk orders. Contact Us.

Features of PCA9306 2-Bit Bidirectional I2C Bus Voltage Level Converter

2-Bit bidirectional translator for SDA and SCL lines
I2C and SMBus compatible
Accommodates standard-mode and fast-mode I2C
Allows voltage-level translation between 1.2V and 5.5V
No direction pin required

Specification of PCA9306 2-Bit Bidirectional I2C Bus Voltage Level Converter

Voltage Range VREF1: 1.2V to 3.3V
Voltage Range VREF2: 1.8V to 5.5V
Dual bidirectional support
I2C and SMBus compatible
Standard and fast-mode support

Applications of PCA9306 2-Bit Bidirectional I2C Bus Voltage Level Converter

Voltage-level translation in mixed-voltage systems
Interfacing different I2C devices
Communication between microcontrollers
Connecting sensors with varying voltage levels

Package Includes

1 X PCA9306 2 Bit Bidirectional I2C Bus and SMBUS Voltage Level Converter

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
