PG164110 in-circuit debugger and programmer for supported Microchip PIC, AVR, dsPIC, SAM and CEC Arm devices, with USB Type-C and multiple target interfaces.

The Microchip PG164110 MPLAB PICkit Basic is an in-circuit debugger and programmer for supported PIC and AVR microcontrollers, dsPIC digital signal controllers, and SAM and CEC Arm-based devices. It connects to a host through USB Type-C and supports target interfaces such as JTAG, SWD, UPDI and ICSP.

Its range of interfaces can support different target designs, while backward compatibility with 2-wire JTAG and ICSP helps when working with older systems. Hardware and software breakpoints, stopwatch measurements and debugging while viewing code help with development tasks. The tool uses the target device’s built-in debug circuitry and has a button for boot firmware recovery.

Use it for programming and debugging Microchip devices in development and learning setups. The target board needs its own power supply; the debugger cannot power it.

DNA stocks Microchip tools for programming and debugging supported devices. Explore the PG164110 and other options in our Programmers range for your development setup. Check other Programmers that we have in stock

Buying electronics in India? Contact DNA if you cannot find a part. Ask us about import support and retail or bulk orders for items such as Digital ICs, converters, diodes, analog ICs, programmers and transistors. Contact Us

Features of Microchip PG164110 MPLAB PICkit Basic In-Circuit Debugger and Programmer

• Supports several target programming and debug interfaces
• Backward compatible with 2-wire JTAG and ICSP systems
• Hardware and software breakpoints support code debugging
• Stopwatch measurements help assess program timing
• Uses the target device's built-in debug circuitry
• Recovery button starts boot firmware recovery

Specifications of Microchip PG164110 MPLAB PICkit Basic In-Circuit Debugger and Programmer

• Host interface: USB Type-C, USB 2.0 High Speed, up to 480 Mbps
• Supported target supply voltage: 1.2 V to 5.0 V ±10%, with the target board powered separately
• Target connector: 8-pin SIL header, 0.100 in spacing
• Onboard microcontroller: 32-bit SAM E70 Arm Cortex-M7, 300 MHz
• Compatible host operating systems: Microsoft Windows, Linux and macOS

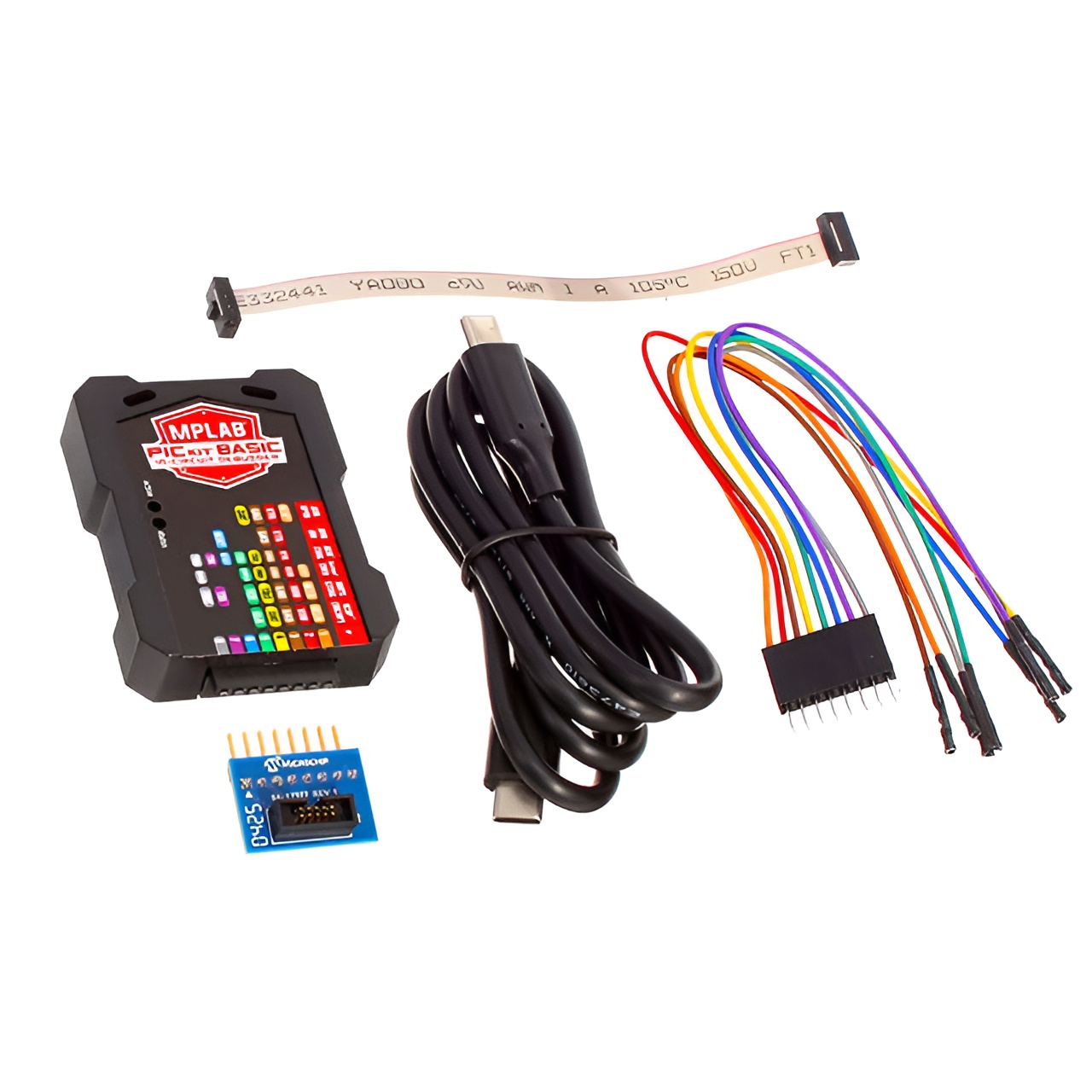

• Included USB cable: 1.5 m USB Type-C
• Included target leads: 8-pin SIL connector with 17 cm color-coded wires
• Included Arm/SWD connection: 12 cm flat cable and 8-pin to 10-pin adapter board

Applications of Microchip PG164110 MPLAB PICkit Basic In-Circuit Debugger and Programmer

• Programming and debugging supported Microchip microcontrollers, digital signal controllers, and Arm-based microcontrollers and microprocessors

Related Links for Microchip PG164110 MPLAB PICkit Basic In-Circuit Debugger and Programmer

• Microchip PG164110 MPLAB PICkit Basic In-Circuit Debugger and Programmer Datasheet

• Other Products from Programmers Category

Package Includes

• 1 X Microchip PG164110 MPLAB PICkit Basic In-Circuit Debugger and Programmer
