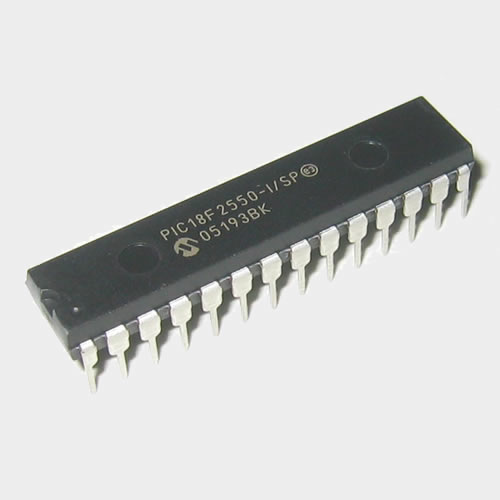

PIC18F2550 Microcontroller

PIC18f2550 is a 40 pin microcontroller from Microchip.

It is ideal for low power (nanoWatt) and connectivity applications that benefit from the availability of three serial ports: FS-USB (12 Mbit/s), I²C™ and SPI™ (up to 10Mbit/s) and an asynchronous (LIN capable) serial port (EUSART). Large amounts of RAM memory for buffering and Enhanced FLASH program memory make it ideal for embedded control and monitoring applications that require periodic connection with a (legacy free) Personal Computer via USB for data upload/download and/or firmware updates. While operating up to 48 MHz, the PIC18F2550 micro-controller is also mostly software and hardware compatible with the PIC16C745 Low-Speed USB OTP devices. THE PICSTART® Plus does NOT currently support this device but may support it in the future.

Features of PIC18F2550 Microcontroller

• Full Speed USB 2.0 (12Mbit/s) interface

• 1K byte Dual Port RAM + 1K byte GP RAM

• Full Speed Transceiver

• 16 Endpoints (IN/OUT)

• Internal Pull Up resistors (D+/D-)

• 48 MHz performance (12 MIPS)

• Pin-to-pin compatible with PIC16C7X5

• Program Memory Type Flash

• Program Memory (KB) : 32

• CPU Speed (MIPS) : 12

• RAM Bytes : 2,048

• Data EEPROM (bytes) : 256

• Digital Communication Peripherals : 1-UART,

• Timers : 1 x 8-bit, 3 x 16-bit

• ADC : 10 ch, 10-bit

• Comparators : 2

• USB (ch, speed, compliance) : 1, FS Device, USB 2.0

• Temperature Range (C) : -40 to 85

• Operating Voltage Range (V) : 2 to 5.5

• Pin Count : 28
