PMBT3904 NPN Switching Transistor NXP

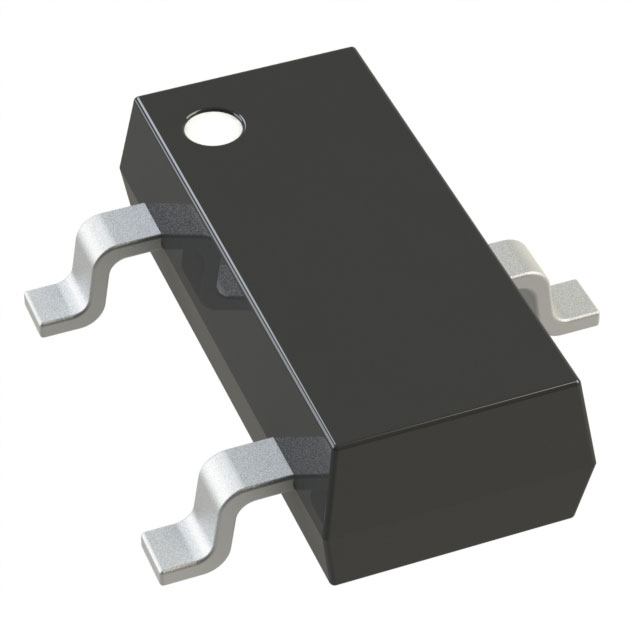

NXP PMBT3904 NPN Switching Transistor

NXPPMBT3904 NPN Transistor for switching and amplification, 200mA collector current, 40V collector-emitter voltage.

The NXP PMBT3904 NPN Switching Transistor is a reliable component for various applications. It is designed for high-speed switching and general-purpose amplification. This transistor operates efficiently in low current circuits, providing a collector current of up to 200 mA and a collector-emitter voltage of 40 V. Its compact SOT-23 package makes it suitable for tight spaces in electronic designs.

Engineered for performance, the NXP PMBT3904 NPN Switching Transistor is ideal for signal processing, digital logic circuits, and discrete amplifiers. It features low noise and fast response, ensuring effective operation in diverse environments. This transistor is RoHS compliant and halogen-free, meeting modern environmental standards.

Utilize the NXP PMBT3904 NPN Switching Transistor in high-speed switching circuits and low power control applications. Its versatility and reliability make it a top choice for both consumer and industrial electronics. Explore its potential in your next project and enhance your electronic solutions.

Explore the range of high-quality Diodes & Transistors from NXP at DNA. Enhance your electronic projects with reliable components and check other Diodes & Transistors that we have in stock.

If you are searching for specific electronic components, DNA can help. We can import parts not currently in stock and support both retail and bulk purchases. Consider exploring related items like Development Modules, Inductors, Power Supplies, and more. Contact Us.

Features of NXP PMBT3904 NPN Switching Transistor

• NPN bipolar junction transistor
• High-speed switching capability
• Low noise and fast response
• Compact SOT-23 SMD package
• RoHS compliant and halogen free
• Reliable performance in a wide range of environments

Specification of NXP PMBT3904 NPN Switching Transistor

• Transistor type: NPN
• Package type: SOT-23
• Collector-emitter voltage (Vce): 40V
• Collector current (Ic): 200mA
• Power dissipation: 250mW
• DC current gain (hFE): 100 to 300
• Transition frequency: 300 MHz

Applications of NXP PMBT3904 NPN Switching Transistor

• High-speed switching circuits
• General-purpose amplification
• Signal processing modules
• Low power control circuits
• Digital logic level conversion

Package Includes

• 1 X NXP PMBT3904 NPN Switching Transistor
