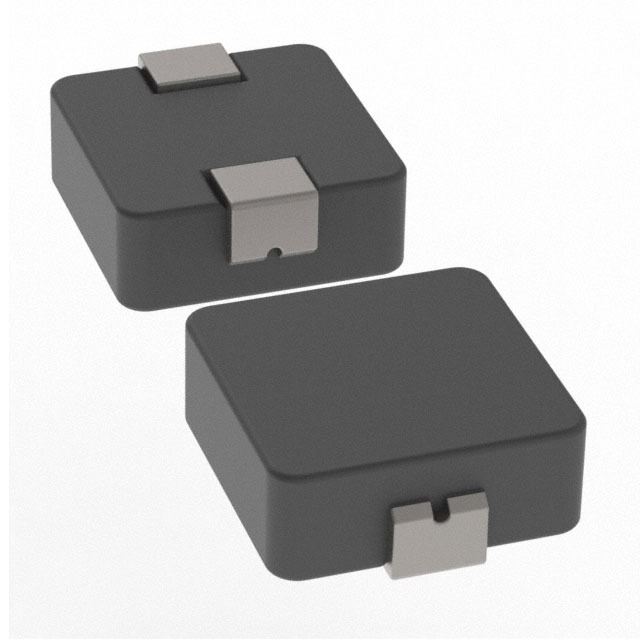

PULSE ELECTRONICS PA4342.562NLT Inductor
- Stock: Out Of Stock
- SKU: 7321 | DAG415
-
Rs. 84.96 (inc GST)
Rs.72.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
PULSE ELECTRONICS PA4342.562NLT Inductor
PULSE ELECTRONICS PA4342.562NLT Inductor
The PA4342.562NLT inductor is part of Pulse Electronics' series of power inductors, which are optimized for use in power supply applications. It is specifically designed to provide high inductance and current handling in a compact, surface-mountable package. The "NLT" suffix indicates that it is lead-free and RoHS-compliant, aligning with global environmental standards.
DNA solutions, Nashik has various types of Inductor's. Check out our complete collection of Inductor's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of PULSE ELECTRONICS PA4342.562NLT Inductor
- High Inductance Value: Provides an inductance of 5.6 µH, suitable for a wide range of power supply and filtering applications.
- Low DCR: The inductor has a low DC resistance, minimizing power loss and improving efficiency in power circuits.
- High Current Handling: Capable of handling significant current loads, with a saturation current rating that supports demanding applications.
- Compact SMD Package: The surface-mount design is optimized for automated PCB assembly processes, making it ideal for high-density circuit boards.
Specifications of PULSE ELECTRONICS PA4342.562NLT Inductor
- Inductance: 5.6 µH (±20% tolerance)
- DC Resistance (DCR): 0.044 Ω (maximum)
- Saturation Current: 3.6 A (typical) – the current at which the inductance drops by 30% due to core saturation.
- Rated Current: 2.7 A – the current at which the temperature rise is within specified limits.
- Operating Temperature Range: -40°C to +125°C, suitable for various environmental conditions, including automotive and industrial applications.
Package Includes
- 1 x PULSE ELECTRONICS PA4342.562NLT Inductor
