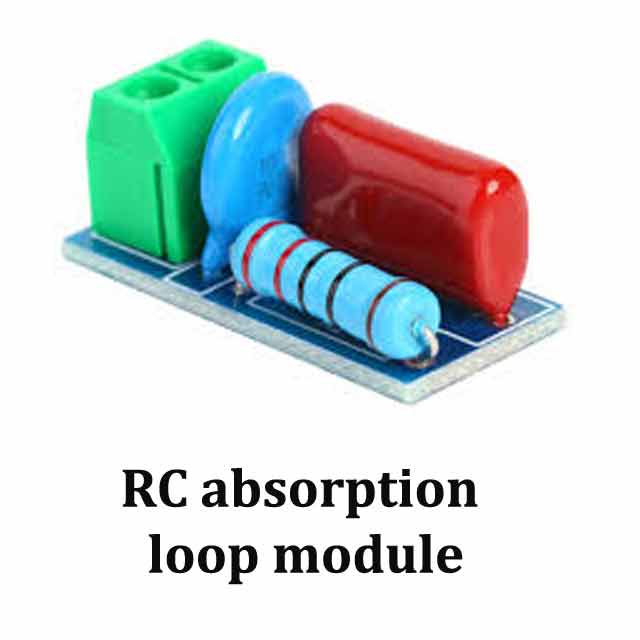

RC Absorption Loop Module

RC Absorption Loop Module for Relay Protection

RC Absorption Loop Module for relay contact protection; supports AC/DC loads up to 400V; enhances anti-jamming capability.

The RC Absorption Loop Module is essential for protecting relay contacts from damage caused by inductive loads. This module effectively absorbs induced electromotive forces, which occur during the switching of AC or DC loads up to 400V. It prevents electromagnetic interference, ensuring the reliability of your microcontroller systems. The RC Absorption Loop Module is designed for loads less than 1000W, making it suitable for various applications.

With its integrated varistor, the module safeguards against excessive voltage fluctuations, preventing relay contact adhesion. The crimp terminals simplify wiring, enhancing installation efficiency. This RC Absorption Loop Module is ideal for both industrial and DIY electronics projects, providing robust performance and reliability.

Choose the RC Absorption Loop Module for dependable relay protection and improved circuit stability. Explore more solutions to enhance your electronic projects today.

Explore high-quality products from, a trusted retailer of ABS IP65 Enclosures and cabinets. Our offerings ensure protection and durability for your electronic components. Check other "ABS IP65 Enclosures and cabinets" that we have in stock.

If you're searching for specific electronic components, can assist you. We offer imports for hard-to-find parts and support both retail and bulk purchases. Check out our range of Development Modules, LCDs, Nextion Displays, Sensor Modules, HMI Displays, and Power Supplies. Contact Us.

Features of RC Absorption Loop Module

• Protects relay contacts
• Absorbs inductive energy
• Supports AC/DC loads up to 400V
• Prevents electromagnetic interference
• Simplifies wiring with crimp terminals

Specification of RC Absorption Loop Module

• AC/DC Voltage: 5 ~ 400V
• Load Capacity: <1000W
• Protection Type: Relay contact protection

Applications of RC Absorption Loop Module

• Relay protection circuits
• Inductive load applications
• Microcontroller anti-jamming solutions

Package Includes

• 1 X RC Absorption Loop Module
