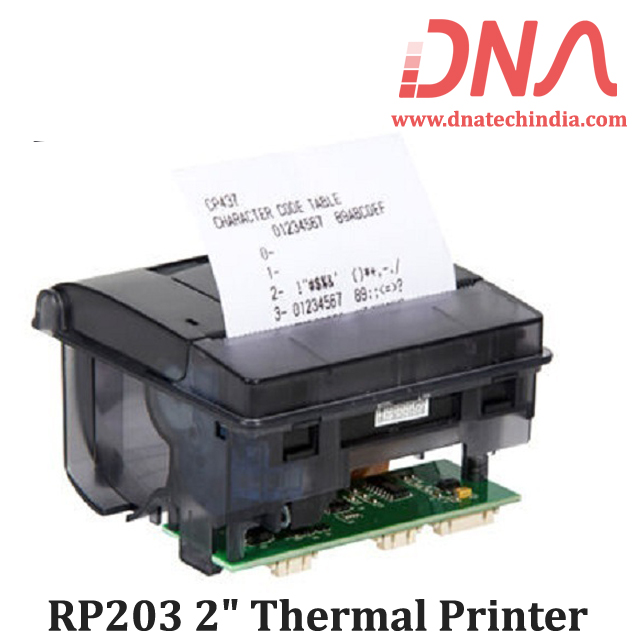

2" Thermal printer with Serial Interface RP203

RP203 Thermal Printer is very easy to use Printer with direct UART interface (TTL as well as RS232). The RP203 thermal printer an be interfaced directly to any microcontroller, Arduino, ESP8266, Node MCU and even with Raspberry Pi.

RP203 thermal printer works on 5 to 9 volts supply and consumes typically 1.5 Ampere current and peak current is 3 Ampere. We suggest using 5 Volts 3 Ampere SMPS for using this RP203 thermal printer.

Thermal transfer printing is a very different method that uses a heat-sensitive ribbon instead of heat-sensitive paper, but uses similar thermal print heads

Thermal printing (or direct thermal printing) is a digital printing process which produces a printed image by selectively heating coated thermochromic paper, or thermal paper as it is commonly known, when the paper passes over the thermal print head.

We have various types of Printers. Check our complete collection of Printers

How To Use

• Printing test : After power up, connect JP4 and disconnect, one test page will be printed.
• On board LED : There is one LED on board to indicate the status of the board. The indicator is as  follows:


            Blink one : Work well

            Blink two : No printer is detected

            Blink three : No paper is detected

            Blank five : Printer mechanism is overheat

Specification of RP203 Thermal Printer

• Printing Method : Thermal
• Paper Width : 57.5mm
• Paper Diameter : 55mm
• Printing width : 48mm
• Resolution : 203 DPI
• Printing Speed : Up to 90mm/s
• BarcodeSupported : 125,UPC-A,UPC-E,EAN-8,EAN-13,Codebar,Code39,Code93,Code128,Code11,MSI
• Font : ASCII(12x24)
• Graphic printing : Direct bitmap printing
• Paper Sensor : Photo-sensor
• Head temperature detection : Thermistor
• Communication Interface : RS232 or RS232 with TTL level
• supply Voltage: 5 volts to 9 Volts
• Current Consumption: 1.5 Ampere (3 Amp Max)
• Head Life : 50km
• Operation condition : 5~45℃，20~90%RH(40℃)
• Storage condition : -40~60℃，20~93%RH(40℃

Feature of RP203 Thermal Printer with serial Interface

• Stylish and elegant appearance
• Low noise and direct thermal printing
• Automatic detecting paper, automatic memory printing
• Support serial port(RS232C,TTL), and parallel port
• Rich graphics/curve/text printing function
• Easy to load paper
