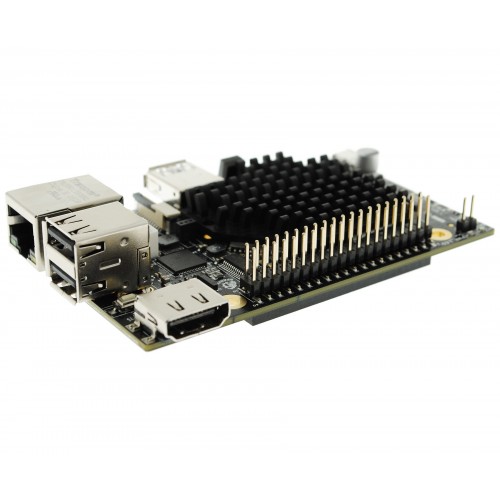

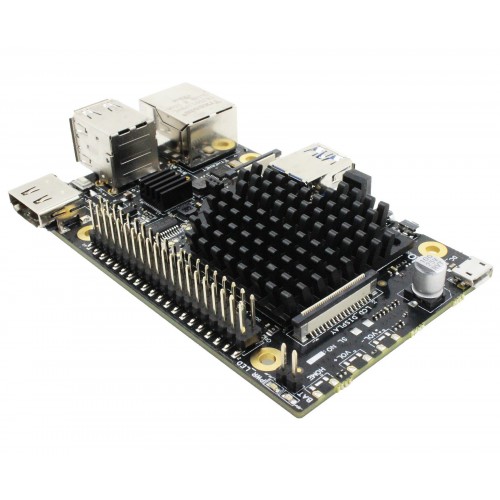

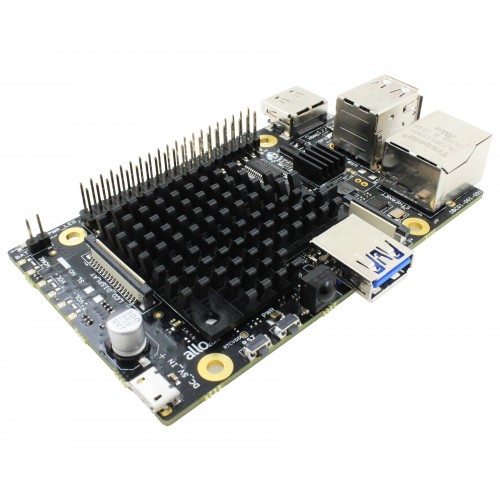

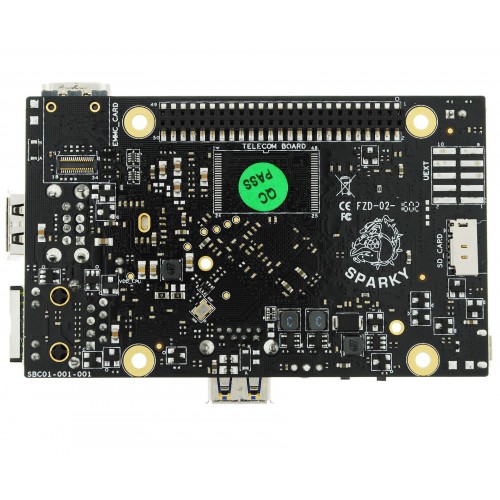

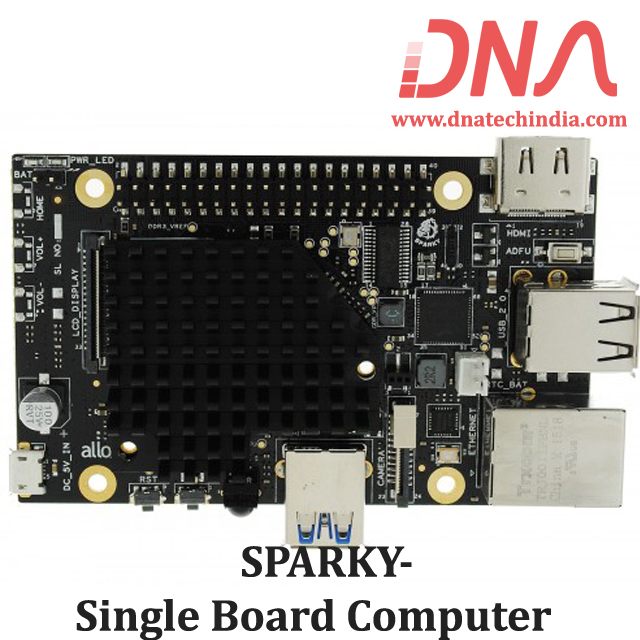

SPARKY-SBC Single Board Computer

SPARKY SBC Single Board Computer

Sparky Single Board Computer (SBC) is a credit card-sized board that can be used as a standalone computer, in electronics projects, games, and also in many other applications.

A true open hardware, community-supported embedded computer for developers and hobbyists. The Sparky SBC has all the functionality of a basic computer.

Sparky is a highly integrated SBC, based on ARM application processor. The Sparky SBC currently supports Linux and Android operating system. It is the best choice for developing customized products as it provides an open, strong and friendly system development platform. Some of the applications are Internet Of Things (IoT), Tablet, Smart TV, Net Book, Game Console, POS machine etc

Sparky also provides the flexibility to use any of the Raspberry PI add-on boards currently available. we also offer the following add-on boards, like Piano Hi-Fi DAC, Volt AMP, Cheapo, GIGA dual Ethernet, Telecom Analog Shield and GSM Shield.

With over a decade of embedding experience, our team is constantly helping application developers to port their new and exciting software to our Sparky SBC.

We have Various sizes of Single Board Computer SBC.Check out our complete collection of Single Board Computer SBC

Features of Sparky SBC

• CPU : ARM Cortex A9 Quad Core Processor at 1.1GHz

• RAM : 1 GB DDR3L RAM

• Display : HDMI, MIPI

• 1080p@60fps HD decoding capability

• USB 3.0 on OTG, USB 2.0

• Expansion Shields ready (Piano DAC, Piano DAC 2.1, BOSS, Volt, Kali, Cheapo, GIGA, LCD, Camera, eMMC, etc.)

• Ethernet : On board Single Ethernet port 10/100Mbps

• Ethernet : On board Single Ethernet port 10/100Mbps

• External Storage : Micro SD up to 32GB and eMMC slot up to 64GB for storing information and loading operating systems

• Connector : 40 pin connector (Raspberry Pi compatible) to enhance your “real world” projects or connect the shields

• 50 Pin Telecom Connector

• Power : The board uses up to 10W of power and can be powered from the USB connector, or a separate 3.7V / 3500mAh battery power supply

• Supports Linux & Android

• For WiFi connectivity, we suggest using our WiFi dongle (driver has been fully tested).

Related Documents

• Sparky SBC Datasheet


Related Video

• Allo Sparky v/s Raspberry Pi 3 || Which one is better?
