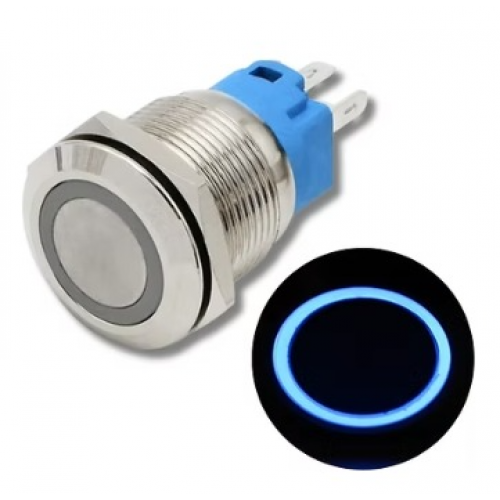

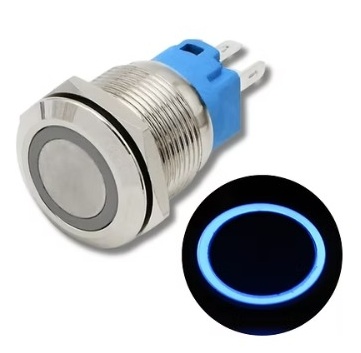

SS Switch IP67 22mm 12 to 24 Volts, Latching, Blue Ring Indicator (Flat Head)

SS Switch IP67 22mm 12 to 24 Volts, Latching, Blue Ring Indicator (Flat Head)

The SS Switch IP67 is a durable, high-quality stainless steel push-button switch designed for industrial and outdoor applications. It features a 22mm mounting hole size and is suitable for control panels, machinery interfaces, automation systems, and DIY electronics. This version is a latching type, meaning it toggles between ON and OFF with each press, making it ideal for use in power control and signal holding applications.

The SS Switch IP67 flat head design ensures a sleek and professional appearance, while the integrated blue ring LED indicator provides a bright and clear visual indication of the switch status. With an IP67 rating, this switch is waterproof and dustproof, making it perfect for harsh or outdoor environments.

This SS Switch IP67 operates on a voltage range of 12V to 24V DC. Its stainless steel build ensures long life, corrosion resistance, and mechanical reliability. The switch supports both Normally Open (NO) and Normally Closed (NC) contacts, offering flexibility in circuit design and installation.

DNA Solutions, Nashik has various types of switches. Check out our complete collection of Switches.

Features of SS Switch IP67 22mm 12 to 24 Volts, Latching, Blue Ring Indicator (Flat Head)

• Material: Stainless Steel (Corrosion-resistant & Durable)

• Mounting Hole Diameter: 22mm

• Head Type: Flat Head

• IP67 Rated: Waterproof & Dustproof

• Mechanical Life: Up to 500,000 cycles

• Electrical Life: Up to 50,000 cycles

Specifications of SS Switch IP67 22mm 12 to 24 Volts, Latching, Blue Ring Indicator (Flat Head)

• Switch Type: Latching Push Button (Push to ON, Push again to OFF)

• Voltage Rating: 12V - 24V DC

• Current Rating: 3A - 5A

• Cutout Size: 22mm

• Indicator LED: Blue Ring

• IP Rating: IP67 (Waterproof & Dustproof)

• Operating Temperature: -20°C to 55°C

Applications of SS Switch IP67 22mm 12 to 24 Volts, Latching, Blue Ring Indicator (Flat Head)

• Industrial Control Panels

• Automotive Applications

• Marine & Outdoor Equipment

• Home Automation & Security Systems

• DIY Electronics Projects

• Aerospace & Military Equipment

• Medical & Laboratory Devices

Package Includes

     1 x SS Switch IP67 22mm 12 to 24 Volts, Latching, Blue Ring Indicator (Flat Head)
