Product Images are shown for illustrative purposes only and may differ from actual product.

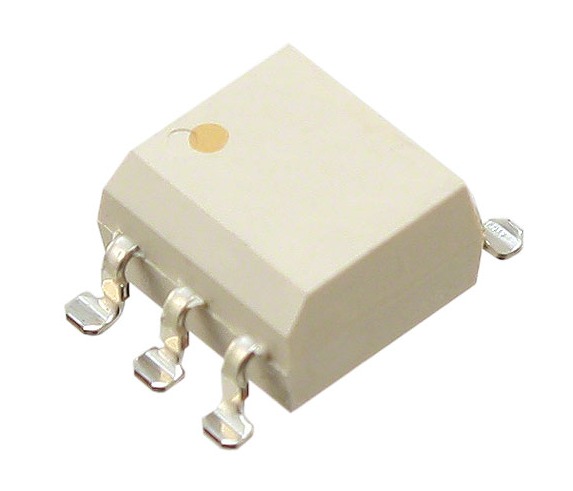

TLP3064 Photocoupler IC
- Stock: Out Of Stock
- SKU: 7917 | DAH362
-
Rs. 278.01 (inc GST)
Rs.235.60 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
TLP3064 Photocoupler IC
TLP3064 Photocoupler IC
The TLP3064 is a photocoupler IC manufactured by Toshiba, incorporating a GaAs infrared LED and a phototriac detector. It is designed to enable signal isolation and control in AC circuits, particularly useful in applications requiring noise immunity and electrical isolation. It operates by converting an electrical input signal into an optical signal, which is then converted back into an electrical signal on the output side.
DNA solutions, Nashik has various types of Photocoupler IC's. Check out our complete collection of Photocoupler IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of TLP3064 Photocoupler IC
- Input-Output Isolation: Provides high isolation voltage between input and output
- Phototriac Output: Capable of controlling AC loads such as motors and lights
- High Noise Immunity: Reduces susceptibility to electromagnetic and RF interference
- Compact Package: Available in a small DIP (Dual Inline Package) design for easy integration
- Wide Input Current Range: Operates efficiently with varying input currents
Specifications of TLP3064 Photocoupler IC
- Input LED Forward Voltage (Vf): ~1.2V (typical)
- Input Current (If): Up to 20mA (standard operation)
- Maximum Peak Forward Current: ~50mA
- Trigger LED Current (Ift): 10mA (typical)
- Off-State Voltage (VDRM): 600V (typical)
- On-State Current (It): ~100mA (typical)
- Isolation Voltage: ~2500Vrms (minimum)
Applications of TLP3064 Photocoupler IC
- AC Load Switching
- Home Appliances
- Industrial Automation
- Signal Isolation
- Motor Drives
Package Includes
1 x TLP3064 Photocoupler IC
