• TM1637 LED Driver SOP 20 IC

Product Images are shown for illustrative purposes only and may differ from actual product.

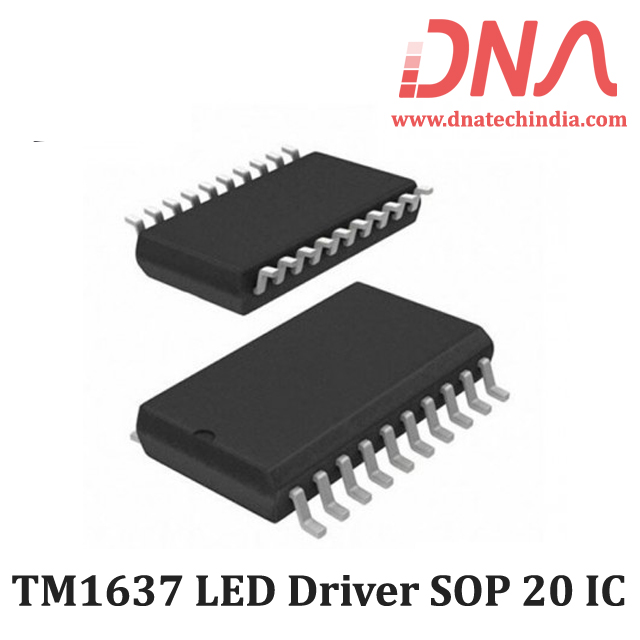

TM1637 LED Driver SOP 20 IC

  • Stock: 700
  • SKU: 2605 | DAE015
  • Rs. 37.76 (inc GST)
    Rs.32.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

TM1637 LED Drive Control SOP20 IC

TM1637 7-Segment LED controller and Key Control IC

TM1637 is a kind of LED (light-emitting diode display) drive control special circuit with keyboard scan interface and it's internally integrated with MCU digital interface, data latch, LED high pressure drive and keyboard scan.

TM1637 is
typically used in 4 digit tube display.These tube displays are very easy to interface to any microcontroller and tutorial for interfacing with Arduino are easily available online.

TM1637 IC is available in DIP20/SOP20 over here we are providing in SOP20 package. TM1637 IC provides excellent performance and high quality, which is mainly applicable to the display drive of induction cooker, micro-wave oven and small household electrical appliance.

We have various types of Load CellsForce SensorFlex Sensor and Pressure Sensor. Check our complete collection of Weigh Sensor and Load cell.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Feature of TM1637 LED Driver IC

  • Applied power CMOS technique
  • The display mode (8 segments*6 bit) supports output by common anode LED.
  • Keyboard scan (8×2bit), with enhanced identification circuit with anti-interference keys
  • Luminance adjustment circuit (adjustable 8 duty ratio)
  • Two-wire serial interface (CLK, DIO)
  • Oscillating type: Built-in RC oscillator
  • Built-in power-on reset circuit
  • Built-in automatic blanking circuit
  • Package type : SOP20

Specification of TM1637 IC

  • D/C : Newest
  • Package : SOP20
  • Model Number : TM1637
  • Type : Driver IC
  • Brand Name : Original brand
  • Place of Origin : Original
  • Description : TM1637, LED Digital Tube Driver IC
  • Power (Watts) : 400m
  • Operating Temperature : -40°C~+85°C
  • Mounting Type : SMT
  • Applications : LED Driver
  • Function : LED driver
