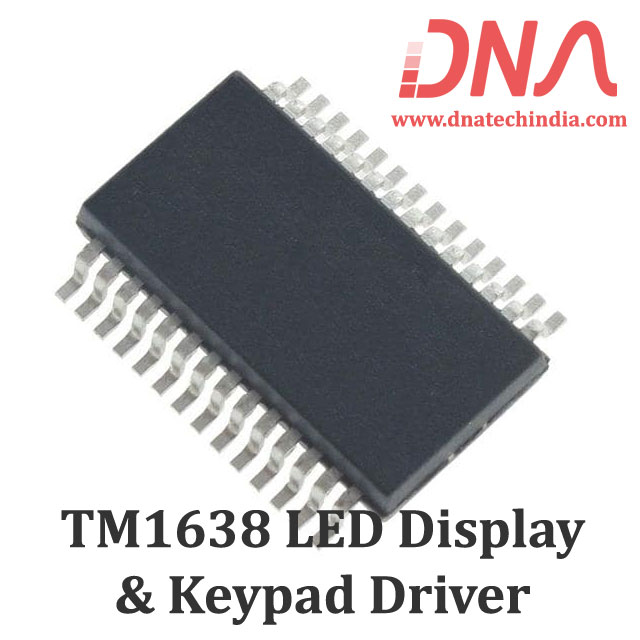

TM1638 Display Driver & Keypad Interface IC

  • Stock: 9

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Titan Micro
  • SKU: 3003 | DAE730

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 29.50 (inc GST)
    Rs.25.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

TM1638 Display Driver & Keypad Interface IC

TM1638 IC for LED display drive control and keypad interface with 10 segments × 8 bits display and built-in power-on reset circuit.

The TM1638 Display Driver & Keypad Interface IC is designed for controlling LED displays and integrating keypad functionality. This reliable IC features 10 segments × 8 bits display, ensuring clear visibility for various applications. The built-in keypad scanning circuit allows seamless interaction with devices, making it perfect for household appliances like smart water heaters and microwave ovens. With its 8-level adjustable duty ratio for brightness control, this IC enhances user experience in digital displays.
Incorporating CMOS technology, the TM1638 ensures stable performance and strong interference resistance. It is widely used in digital tube or LED display devices, including set-top boxes and electronic scales. The serial interfaces (CLK, STB, DIO) facilitate easy integration into existing systems, making it a versatile choice for engineers and hobbyists alike. Choose the TM1638 Display Driver & Keypad Interface IC for your next project and enjoy its robust features and reliability.
This IC is available for purchase at our local shop in Nashik or online for delivery across India. Explore the potential of the TM1638 in your electronic projects today.
At DNA, we offer high-quality electronic components from trusted manufacturers like TM. Explore our range of Components & IC's to find the right parts for your projects. Check other "Components & IC's" that we have in stock.
If you are searching for specific electronic parts, reach out to us. We can import items not in stock and support you with retail and bulk orders. Explore related components like SMPS, Digital IC, Resistor, Analog IC, Development Module, and Nextion Display. Contact Us.

Features of TM1638 Display Driver & Keypad Interface IC

  • CMOS technology
  • 10 segments × 8 bits display
  • Keypad scanning (8 × 3 bits)
  • Brightness adjustment circuit (8-level adjustable duty ratio)
  • Serial interfaces (CLK, STB, DIO)
  • Built-in power-on reset circuit
  • Package type: SOP28

Specification of TM1638 Display Driver & Keypad Interface IC

  • Display type: LED
  • Operating voltage: 3.3V - 5V
  • Operating temperature: -40°C to 85°C

Applications of TM1638 Display Driver & Keypad Interface IC

  • Household appliances
  • Smart water heaters
  • Microwave ovens
  • Set-top boxes
  • Electronic scales

Related Links for TM1638 Display Driver & Keypad Interface IC

Package Includes

  • 1 X TM1638 Display Driver & Keypad Interface IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
