  • TTP226 Touch Sensor IC

Product Images are shown for illustrative purposes only and may differ from actual product.

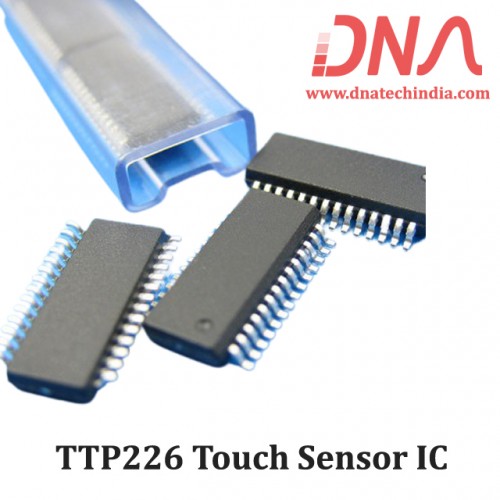

TTP226 Touch Sensor IC

  • Stock: Out Of Stock
  • Brand: Tontek
  • SKU: 1177 | DAB651
  • Rs. 100.30 (inc GST)
    Rs.85.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

TTP226 Touch Sensor IC

The TTP226 is a touch pad detector IC which offers 8 touch keys.

The touching detection  IC is designed for replacing traditional direct button key with fixed pad size. Low power consumption and wide operating voltage are the contact key features for DC or AC application.

DNA Solutions has various makes & types of TouchSensor IC's. We deal in retail and bulk quantity as well. Check our collection of various types of TouchSensor IC.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TT226 Touch IC

  • Operating voltage 2.0V~5.5V

  • Operating current typical 100uA, max 160uA at VDD=3V

  • The output refresh rate about 55Hz at VDD=3V

  • 64 steps sensitivity selectable (SLSE0~5 pin option)

  • Another have offer 2 kinds of base-step (OPST pin option)

  • Stable touching detection of human body for replacing traditional direct switch key

  • Provides direct mode、matrix mode and serial mode selected by pad option

  • Maximum 8 input pads and 8 outputs for direct mode;

  • Maximum 8 input pads for serial interface mode;

  • Maximum 8 input pads provide fixed 2*4 and 3*3 matrix types

  • Outputs can be selected active high or active low by pad option

  • After power-on have 0.8~1.0sec stable-time, during the time do not touch the key-pad, And the function is disabled.

  • Auto calibration for life. And the re-calibration period is 0.8~1.0sec. When all keys do not touched.

Applications of TTP226 Touch IC

  • Wide consumer products

  • Button key replacement
