PM8834TR MOSFET Low-Side Gate Driver SMD IC

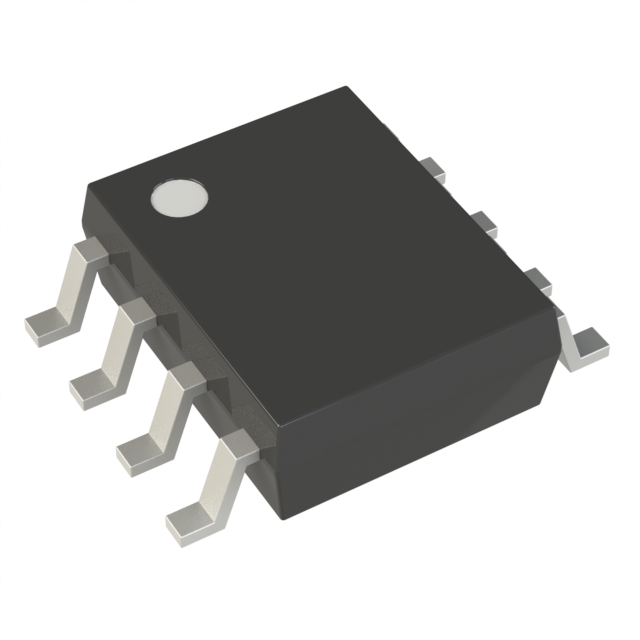

STMicroelectronics PM8834TR MOSFET Low-Side Gate Driver IC

PM8834TR Low-Side Gate Driver IC with 5A source, 6A sink current, and 25ns propagation delay.

The STMicroelectronics PM8834TR MOSFET Low-Side Gate Driver IC is engineered for high-frequency switching applications. It effectively drives low-side N-channel MOSFETs, making it suitable for synchronous buck converters and DC-DC regulators. With a robust driver stage, it can source 5A and sink 6A peak currents, ensuring rapid switching performance. The 25ns propagation delay enhances efficiency in power management systems.

This driver IC features under-voltage lockout protection and TTL/CMOS compatible input thresholds. The built-in logic inversion feature adds flexibility to gate control. The PM8834TR MOSFET Low-Side Gate Driver IC operates within a voltage range of 4.5V to 13.2V and supports a temperature range of -40°C to +125°C.

Applications include DC-DC converters, motor control, and Class D audio amplifiers, making the PM8834TR MOSFET Low-Side Gate Driver IC a versatile choice for electronic circuits. Explore its potential in your designs today.

At DNA, we offer a range of MOSFET & IGBT products from STMicroelectronics. Enhance your power management systems with our high-quality components. Check other MOSFET & IGBT that we have in stock.

If you're searching for specific electronic components, DNA can assist. We can import parts not readily available and support both retail and bulk orders. Explore related items like Hongfa Relay, Capacitor, Sensor Module, and more. Contact Us.

Features of STMicroelectronics PM8834TR MOSFET Low-Side Gate Driver IC

• High-speed low-side gate driver
• Capable of sourcing 5A and sinking 6A peak currents
• Propagation delay time: 25ns (typ.)
• TTL/CMOS compatible input thresholds
• Under-voltage lockout protection (UVLO)
• Built-in logic inversion feature

Specification of STMicroelectronics PM8834TR MOSFET Low-Side Gate Driver IC

• Operating Voltage: 4.5V to 13.2V
• Output Current: 5A (source), 6A (sink)
• Input Logic: TTL/CMOS compatible
• Propagation Delay: 25ns (typical)
• Operating Temperature Range: -40°C to +125°C
• Package: 8-pin SOIC

Applications of STMicroelectronics PM8834TR MOSFET Low-Side Gate Driver IC

• DC-DC converters
• Synchronous buck regulators
• Motor control
• Class D audio amplifiers
• General-purpose MOSFET driver circuits

Package Includes

• 1 X STMicroelectronics PM8834TR MOSFET Low-Side Gate Driver IC
