VTB8441BH-ND SENSOR PHOTO DIODE (2-DIP Module)
- Stock: Out Of Stock
- SKU: 8882 | DAH924
-
Rs. 545.41 (inc GST)
Rs.462.21 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
VTB8441BH-ND SENSOR PHOTO DIODE (2-DIP Module)
VTB8441BH-ND SENSOR PHOTO DIODE (2-DIP Module)

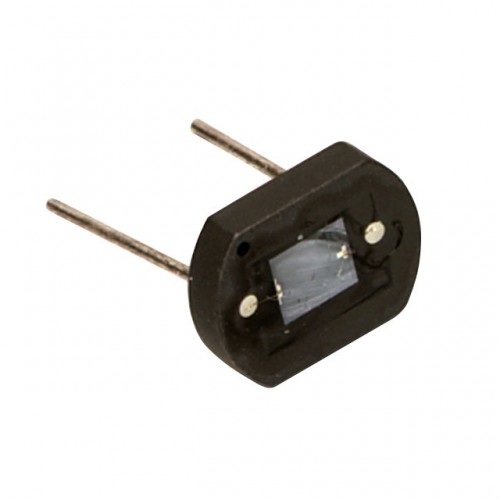

The VTB8441BH is a blue-enhanced silicon photo diode from Excelitas Technologies, designed for visible light detection with an integrated infrared (IR) rejection filter. Housed in a compact 2-DIP through-hole ceramic package, it is ideal for applications requiring high sensitivity and low dark current.
DNA solutions, Nashik has various types of Photo Diode's. Check out our complete collection of Photo Diode's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of VTB8441BH-ND SENSOR PHOTO DIODE (2-DIP Module)
- Blue-enhanced spectral response for visible light detection
- Built-in IR rejection filter reduces interference from infrared light
- Low dark current (~100 pA typical) for better signal-to-noise ratio
- High shunt resistance ensures low offset in amplifier circuits
- Wide viewing angle (approx. 100°) for broad light sensitivity
- Clear epoxy window for rugged environmental protection
- Compact ceramic 2-lead DIP package (through-hole) RoHS compliant for environmentally friendly manufacturing
Specifications of VTB8441BH-ND SENSOR PHOTO DIODE (2-DIP Module)
- Spectral Range: 330 nm – 720 nm
- Peak Wavelength (λp max): 580 nm
- Active Area: 5.16 mm²
- Viewing Angle: 100°
- Dark Current: ~100 pA
- Reverse Voltage (Max): 40 V
- Mounting Type: Through-hole
- Shunt Resistance: 200 MΩ
Applications of VTB8441BH-ND SENSOR PHOTO DIODE (2-DIP Module)
- Visible Light Sensing
- Security Systems
- Color and Light Meters
- Optical Communication Devices
- Industrial Automation
Package Includes
1 x VTB8441BH-ND SENSOR PHOTO DIODE (2-DIP Module)
