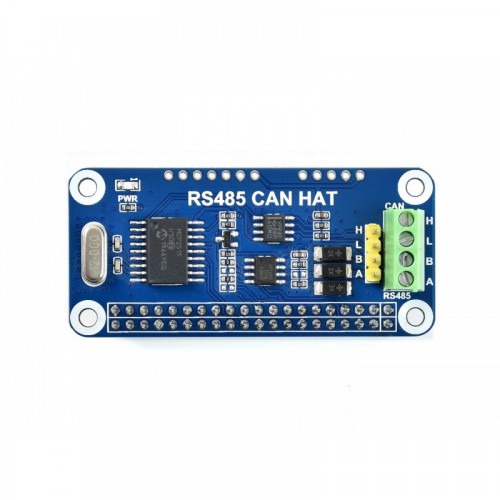

Waveshare RS485 CAN HAT for Raspberry Pi

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-20

  • Brand: Waveshare
  • SKU: 7688 | DAG027

Availability: NotInStock priceValidUntil: 2026-12-20

  • Rs. 994.74 (inc GST)
    Rs.843.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Waveshare RS485 CAN HAT for Raspberry Pi

Waveshare RS485 CAN HAT for Raspberry Pi enables long-distance communication with RS485/CAN functions and key specs: 3.3V operating voltage, MCP2515 controller.

The Waveshare RS485 CAN HAT for Raspberry Pi enhances communication capabilities by providing stable, long-distance connectivity via RS485 and CAN protocols. This module integrates seamlessly with Raspberry Pi boards, featuring a standard 40PIN GPIO header. It includes an onboard MCP2515 CAN controller and SP3485 RS485 transceiver for efficient data transfer. Ideal for industrial automation, this module serves various applications, including automotive networks and IoT projects. With a compact size of 65mm × 30mm, the Waveshare RS485 CAN HAT is perfect for educational and prototyping use, making it a versatile choice for developers and engineers alike. Explore its full potential in building management systems and energy monitoring solutions.
Discover high-quality solutions from Waveshare in the Communication Modules category at DNA. Enhance your projects with reliable components. Check other Communication Modules that we have in stock.
If you're searching for specific electronic components in India, reach out to us. We can import parts if needed, and we support retail and bulk orders. Explore related items like Digital IC, Crystal, Programmer, Capacitor, Development Module, and IGBT. Contact Us.

Features of Waveshare RS485 CAN HAT for Raspberry Pi

  • Standard Raspberry Pi 40PIN GPIO extension header
  • Supports Raspberry Pi series boards
  • Onboard CAN controller MCP2515 via SPI interface
  • Onboard transceiver SN65HVD230
  • RS485 function controlled via UART.

Specification of Waveshare RS485 CAN HAT for Raspberry Pi

  • Operating Voltage: 3.3V
  • Communication Protocols: RS485 (UART), CAN (SPI)
  • CAN Controller: MCP2515
  • RS485 Transceiver: SP3485
  • Dimensions: 65mm × 30mm

Applications of Waveshare RS485 CAN HAT for Raspberry Pi

  • Industrial Automation
  • Automotive Networks
  • Building Management Systems
  • IoT and Smart Home Projects
  • Energy Monitoring
  • Educational and Prototyping Use

Related Links for Waveshare RS485 CAN HAT for Raspberry Pi

Package Includes

  • 1 X Waveshare RS485 CAN HAT
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
