  • WCS1303 Hall Effect Base Current Switch

Product Images are shown for illustrative purposes only and may differ from actual product.

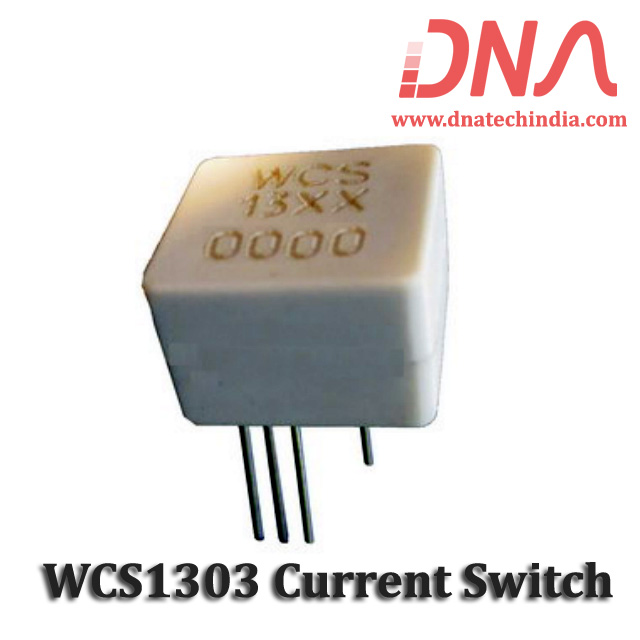

WCS1303 Hall Effect Base Current Switch

  • Stock: Out Of Stock
  • Brand: Winson
  • SKU: 0769 | DAA582
  • Rs. 259.60 (inc GST)
    Rs.220.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

WCS1303 Hall Effect Base Current Switch

Hall Effect Current Switch with 3 Ampere Cutoff.

Winson’s WCS1301,1302,1303 and 1304 provides cheap and convenient solution for current detection in industrial and commercial electronic systems. Typical applications include short circuit detection, load detection and over-current fault detection etc…

WCS1303 Current Sensor consists of a precise, low-temperature drift hall switch IC with temperature compensation circuit and a current path with typical 8.3 mΩ internal conductor resistance. This extremely low resistance can effectively reduce power loss, operating temperature and increase the reliability greatly. Measured current IP flowing through this conduction path generates a magnetic field which is sensed by the integrated Hall switch IC and output “Low” when IP>=Iop and output “High” when IP<Irp. The terminals of the conductive path are electrically isolated from the sensor leads. This allow the WCS1303 current switch to be used in applications requiring electrical isolation without the use of opto-isolators or other costly isolation techniques and make system more competitive in cost.

DNA Solutions has a large collection of various types of Current and Voltage Sensors. Check our complete collection of Current and Voltage Sensor.

Features of WCS1303 Hall Effect Current Switch

  • 8.3 mΩ internal conductor resistance

  • Output “Low” when IP>= Iop

  • Output “High” when IP < Irp

  • Wide operating voltage range 2.6~1 8 V.

  • Low operating current 2.0mA

  • 10 KHz bandwidth

  • Operating Point Iop: Min 2.0Amp; Max 3.0Amp

  • Release Point Irp: Min 1.5Amp
