Product Images are shown for illustrative purposes only and may differ from actual product.

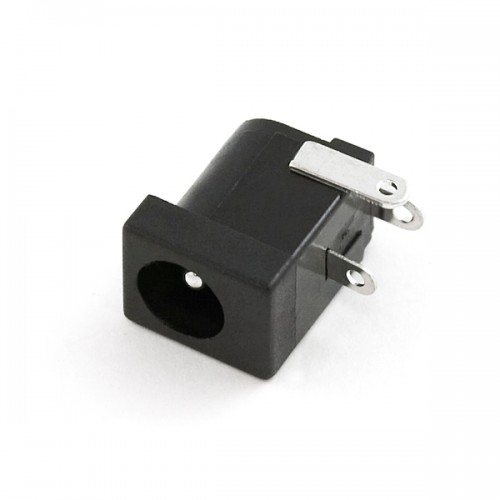

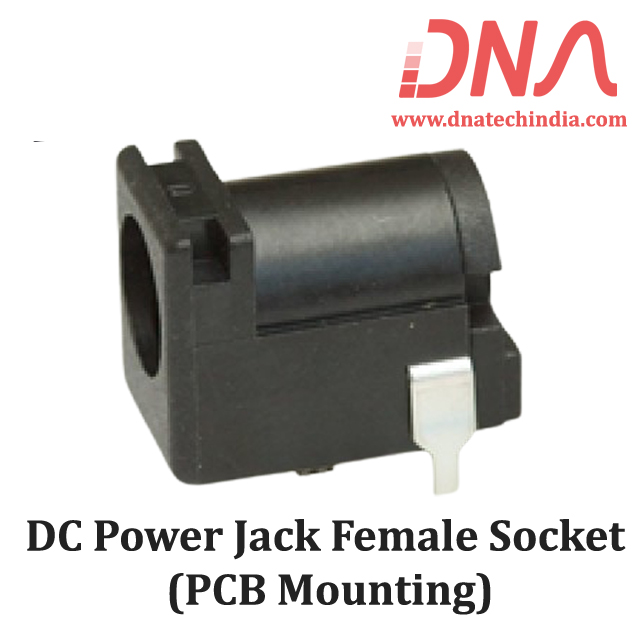

DC Power Jack Female Socket (PCB Mounting)

  • Product Code: 1387
  • Availability: 23
  • Price :

    Rs.9.44 (inc GST)

    Qty :

  • Quantity Pricing (inc GST)

    5 + 15.34 10 + 14.75 25 + 14.16 50 + 13.57

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

2.1 X 5.5mm DC Power Jack Female Socket PCB Mounting

DC power jack/connector. This is a common barrel-type power jack for DC power. These are compatible with our DC wall supplies and have a 5.5mm jack, with a 2.1mm center pole diameter.

This DC Power PCB Mounting Socket is the same one that is used in your Arduino Uno Board. So if you want to reduce all power wiring on your PCB then provide this power socket mounting option on your PCB.


Specification of DC Socket

  • Conditions of Use: Operating temperature range: -40-55°C
  • Rated Load: DC 30V 0.5A
  • Contact resistance: ≤0.03 Ω
  • Insulation resistance: ≥100MΩ DC 250V
  • Withstand Voltage: AC 500V (50Hz) / min
  • Insertion force :3-20N
  • Life: 5000 times
  • Size: 2.1X5.5mm
