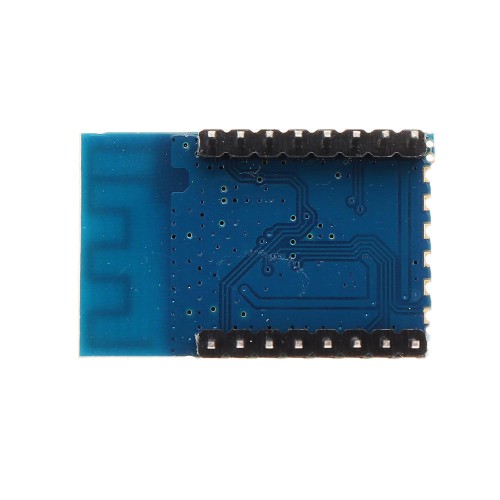

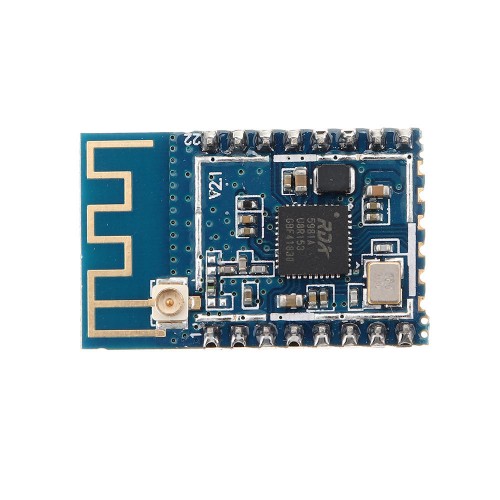

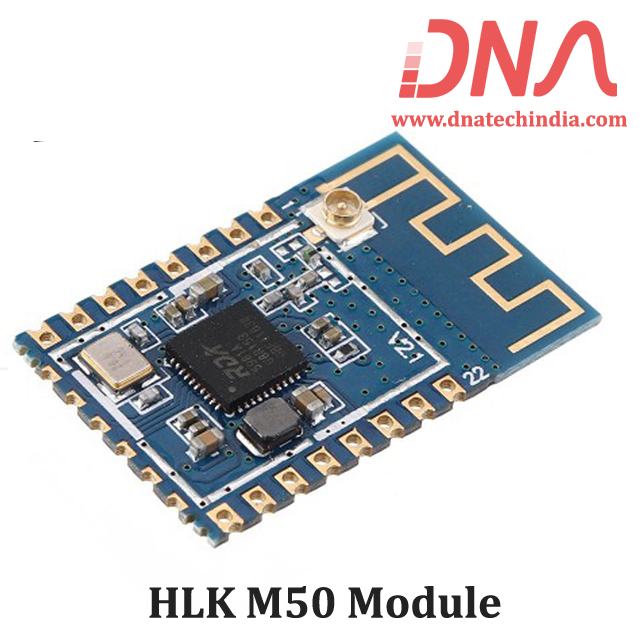

HLK M50 Module

Hi-Link HLK-M50-I 2.4 GHz Wi-Fi Module with Integrated MCU

Hi-Link HLK-M50-I is a 2.4 GHz 802.11b/g/n Wi-Fi module with an ARM Cortex-M4 MCU, up to 150 Mbps data rate and 8 Mbit SPI flash.

The Hi-Link HLK-M50-I is a 2.4 GHz Wi-Fi module with an integrated ARM Cortex-M4 MCU. It connects embedded products to 802.11b/g/n networks, with a maximum data rate of 150 Mbps.

Its combined radio and control design can reduce the need for separate wireless and processing parts. The module supports station, soft access point and peer-to-peer modes, plus a lightweight TCP/IP stack. USB host and device support adds another option for system integration.

Use this Wi-Fi module for IoT applications in smart home devices, industrial automation, wireless sensor networks and remote monitoring systems. The integrated MCU and network function provide a compact way to add wireless communication and local control to an embedded design.

DNA is an electronics retailer in India and stocks Hi-Link products in the Wifi category. Contact DNA about the HLK-M50-I for your embedded connectivity needs. Check other Wifi that we have in stock

If you cannot find a part, contact DNA for import support. We support retail and bulk orders, and can help you find related items such as connectors, capacitors, crystals, resistors or analog ICs. Contact Us

Features of Hi-Link HLK-M50-I 2.4 GHz Wi-Fi Module with Integrated MCU

• Integrates Wi-Fi MAC, PHY, radio, PA and LNA
• Combines wireless connectivity with an ARM Cortex-M4 controller
• Supports station, soft access point and peer-to-peer modes
• Includes a lightweight TCP/IP stack
• Supports WPA, WPA2, WEP, TKIP and CCMP security
• Offers USB host and device operation

Specifications of Hi-Link HLK-M50-I 2.4 GHz Wi-Fi Module with Integrated MCU

• Wi-Fi standard and frequency: IEEE 802.11b/g/n, 2.4 GHz
• Maximum Wi-Fi data rate: 150 Mbps
• Wi-Fi bandwidth: 20 MHz or 40 MHz
• MCU: ARM Cortex-M4, maximum clock frequency 160 MHz
• Built-in flash: 8 Mbit SPI flash
• VBAT supply: 3.3 V typical, 3.3–3.5 V range, current requirement ≥500 mA
• UART: Up to 2 ports, configurable baud rate from 1200 bps to 4 Mbps
• USB: 1 USB 2.0 high-speed interface with host and device support, factory default is host

Applications of Hi-Link HLK-M50-I 2.4 GHz Wi-Fi Module with Integrated MCU

• IoT applications
• Smart home devices
• Industrial automation
• Wireless sensor networks

Related Links for Hi-Link HLK-M50-I 2.4 GHz Wi-Fi Module with Integrated MCU

• Other Products from Wifi Category

Package Includes

• 1 X Hi-Link HLK-M50-I 2.4 GHz Wi-Fi Module with Integrated MCU
